3298 Series

Catalog

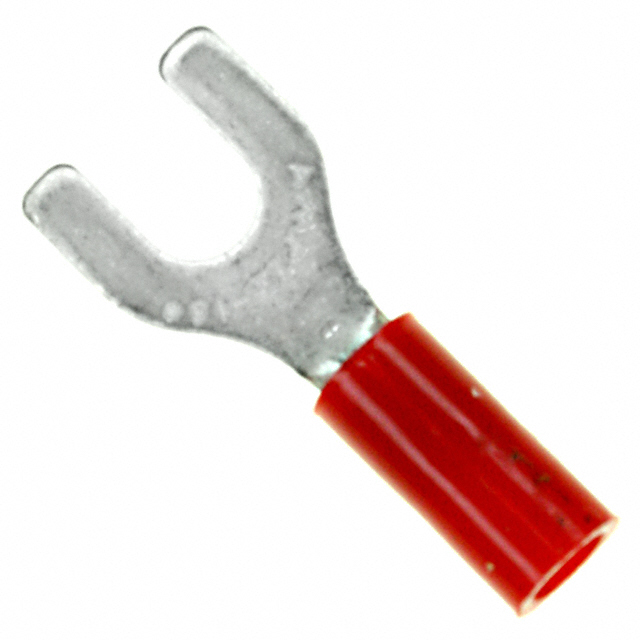

CONN SPADE TERM 16-22AWG #8 RED

Part	Stud/Tab Size	Color	Insulation	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Features	Mounting Type	Terminal Type	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Termination	Length - Overall [x]	Length - Overall [x]	Length - Termination	Length - Termination	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity Raychem Cable Protection 32981	8 Stud	Red	Insulated	7.92 mm	0.312 in	Serrated Termination	Free Hanging (In-Line)	Standard	Tin	0.375 in	9.53 mm	Copper	2.03 mm	3.18 mm	0.125 "	0.08 in	0.171 in	4.34 mm	Poly-Vinyl Chloride (PVC)	Crimp	23.37 mm	0.92 "	10.57 mm	0.416 in	22 AWG	16 AWG
