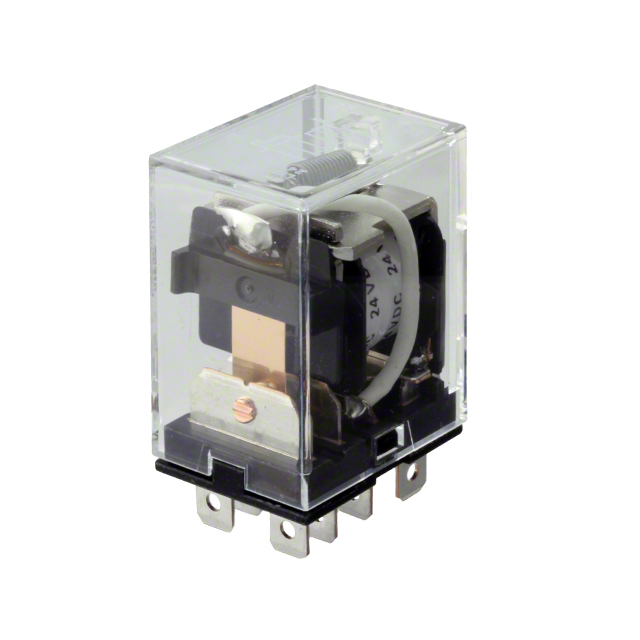

LY1N AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 15A 220V
| Part | Operate Time | Contact Rating (Current) | Must Release Voltage | Switching Voltage | Contact Form | Coil Voltage | Features | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Current | Mounting Type | Approval Agency | Release Time | Contact Material | Load - Max Switching | Termination Style | Coil Resistance | Relay Type | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 25 ms | 15 A | 66 VAC | 125 VDC 250 VAC | SPDT (1 Form C) | 220 VAC/DC | Lighted Indicator | 55 °C | -25 °C | 176 VAC | 5.8 mA | Socketable | CE CSA TUV UR | 25 ms | Silver Alloy | 1875 W 3750 VA | Plug In | 12.95 kOhms | General Purpose | Non Latching |
