MN8 Series

Catalog

CONN RING CIRC 8AWG #3/8 CRIMP

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Features	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Stud/Tab Size	Thickness	Thickness	Contact Material	Color	Wire Gauge	Insulation	Terminal Type	Termination	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Length - Overall

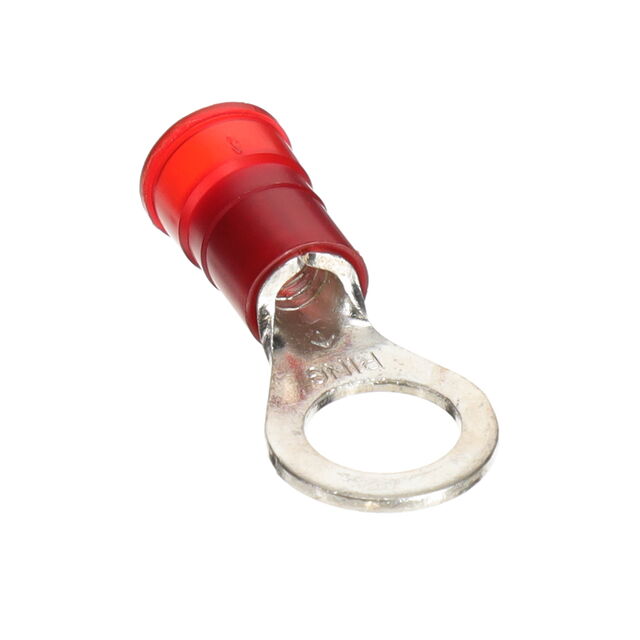

3M Electronic Specialty MN8-38RK	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam	35.05 mm	1.38 in	14.99 mm	0.59 in	Free Hanging (In-Line)	0.375 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin
3M Electronic Specialty MN8-14R/SX-BOTTLE	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam	32 mm	1.26 "			Free Hanging (In-Line)	0.25 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin	0.47 in	11.94 mm
3M Electronic Specialty MN8-516RK	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam	35.05 mm	1.38 in	14.99 mm	0.59 in	Free Hanging (In-Line)	0.3125 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin
3M Electronic Specialty MN8-10R/SK	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam	32 mm	1.26 "			Free Hanging (In-Line)	10 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin	0.47 in	11.94 mm
3M Electronic Specialty MN8-38RX-BOTTLE	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam	35.05 mm	1.38 in	14.99 mm	0.59 in	Free Hanging (In-Line)	0.375 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin
3M Electronic Specialty MN8-12R/SK	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam			20.57 mm	0.81 "	Free Hanging (In-Line)	0.5 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin			43.69 mm	1.72 in
3M Electronic Specialty MN8-14R/SK	8.64 mm	0.34 in	Nylon Polyamide (PA)	Brazed Seam	32 mm	1.26 "			Free Hanging (In-Line)	0.25 Stud	50 mils	0.05 in	Copper ETP	Red	8 AWG	Insulated	Circular	Crimp	Tin	0.47 in	11.94 mm
