400M0-25 Series
Manufacturer: CNC Tech
Beta
⌘K

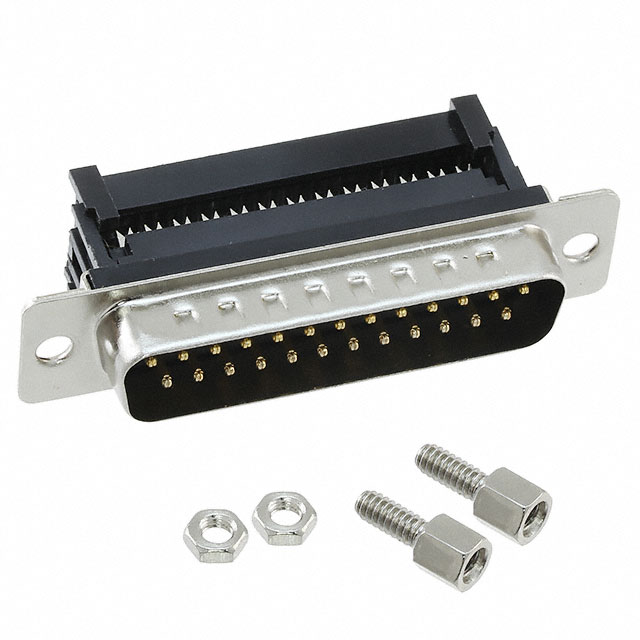

CONN D-SUB PLUG 25POS IDC
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Number of Rows [custom] | Shell Material, Finish | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Material Flammability Rating | Mounting Type | Flange Feature | Termination | Number of Positions | Features | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | -40 C | 105 ░C | Brass | Gold | 2 | Nickel Plated Steel | Signal | B DB | 3 | UL94 V-0 | Free Hanging (In-Line) | 4-40 Mating Side Female Screwlock | IDC Ribbon Cable | 25 | Feed Through Grounding Indents | Plug Male Pins | D-Sub |
 CNC Tech | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | -40 C | 105 ░C | Brass | Gold | 2 | Nickel Plated Steel | Signal | B DB | 3 | UL94 V-0 | Free Hanging (In-Line) | 4-40 Mating Side Female Screwlock | IDC Ribbon Cable | 25 | Feed Through Grounding Indents Strain Relief | Plug Male Pins | D-Sub |
