123-91 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

SOCKET IC OPEN 3 LVL .400 20POS

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Contact Material - Mating	Pitch - Post	Pitch - Post	Housing Material	Termination	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 123-91-420-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	20	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C	0.4 in	DIP
Mill-Max Manufacturing Corp. 123-91-950-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead		0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C	0.9 in	DIP	22.86 mm	2	50	25
Mill-Max Manufacturing Corp. 123-91-648-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead		0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C		DIP		24		2	48	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 123-91-304-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	4 pins	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C	0.3 in	DIP	7.62 mm							2 x 2
Mill-Max Manufacturing Corp. 123-91-314-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	14	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C	0.3 in	DIP	7.62 mm
Mill-Max Manufacturing Corp. 123-91-628-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	28	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C		DIP						15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 123-91-624-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	24	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C		DIP		12		2		15.24 mm	0.6 in

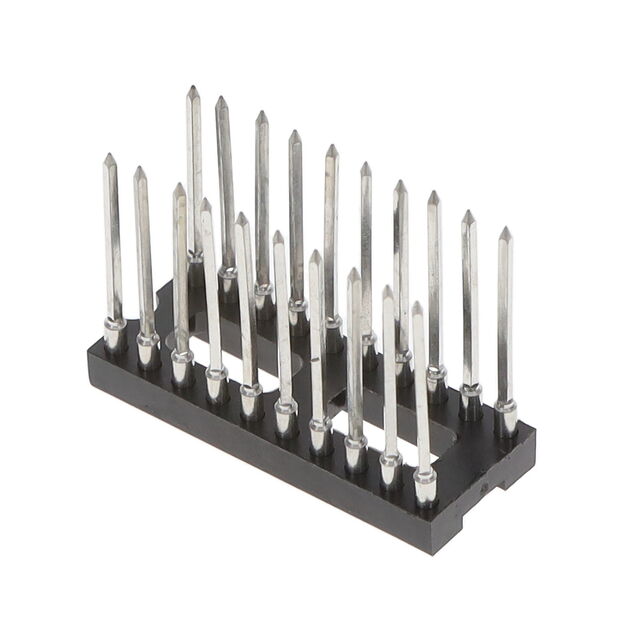

Mill-Max Manufacturing Corp. 123-91-320-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	20	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C	0.3 in	DIP	7.62 mm
Mill-Max Manufacturing Corp. 123-91-422-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	22	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C	0.4 in	DIP		2		11
Mill-Max Manufacturing Corp. 123-91-632-41-001000	3 A	12.95 mm	0.51 "	Beryllium Copper	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Wire Wrap	Gold	200 µin	5.08 µm	Tin-Lead	32	0.25 µm	10 µin	Through Hole	0.1 "	2.54 mm	Brass Alloy	Open Frame	-55 C	125 °C		DIP						15.24 mm	0.6 in
