04BEEG Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Mounting Type	Approval Agency	Filter Type	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Current Rating - Filter	Connector Style	Features

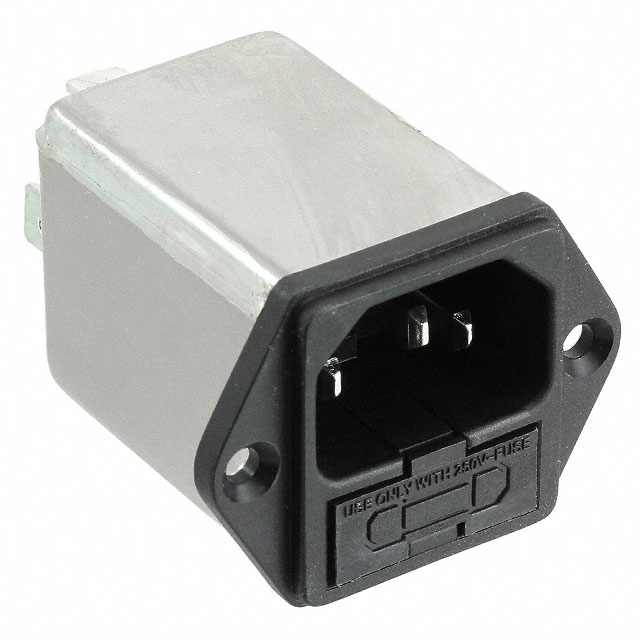

Delta Electronics 04BEEG3S	Flange Panel Mount	CSA UL VDE	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	33 mm	29 mm	Quick Connect	115 VAC	250 VAC	4 A	Fuse Holder	4 A	IEC 320-C14

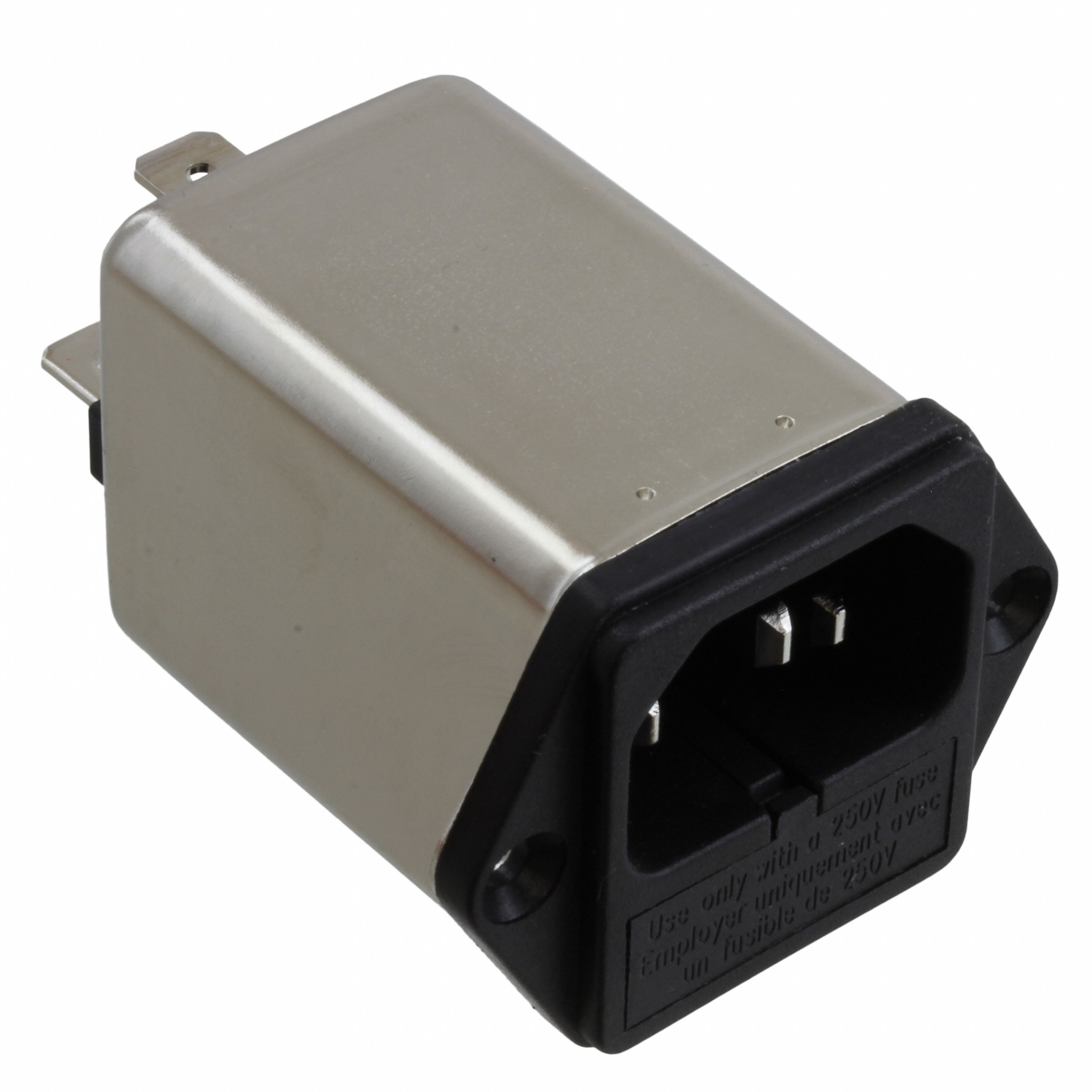

Delta Electronics 04BEEG3FM-R	Flange Panel Mount	CSA UL VDE	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	33.1 mm	29 mm	Quick Connect	115 VAC	250 VAC	4 A	Twin Fused	4 A	IEC 320-C14	Bleed Resistor
Delta Electronics 04BEEG3H	Flange Panel Mount	CSA UL VDE	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	33 mm	29 mm	Quick Connect	115 VAC	250 VAC	4 A	Fuse Holder	4 A	IEC 320-C14

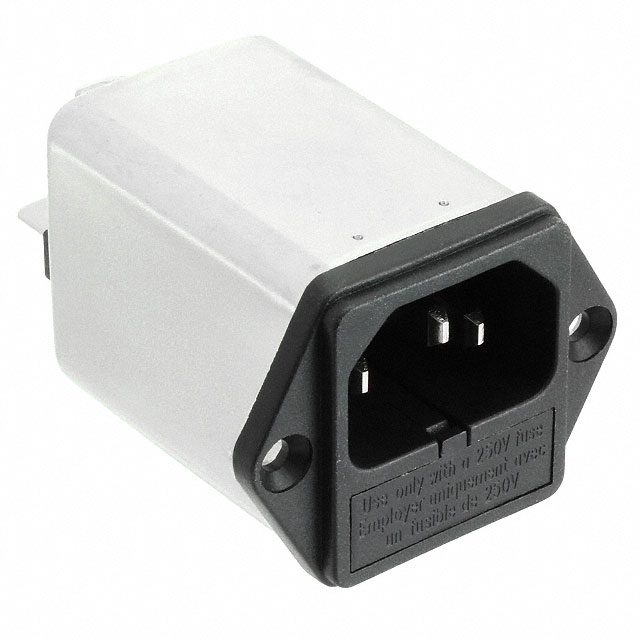

Delta Electronics 04BEEG3F	Flange Panel Mount	CSA UL VDE	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	33.1 mm	29 mm	Quick Connect	115 VAC	250 VAC	4 A	Twin Fused	4 A	IEC 320-C14
