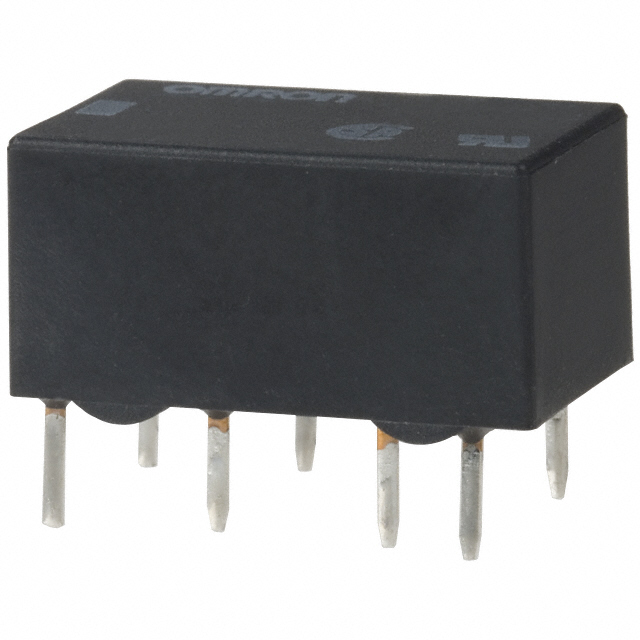

G5A-234 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 24V
| Part | Contact Form | Approval Agency | Must Release Voltage | Coil Current | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Coil Type | Mounting Type | Contact Rating (Current) | Operate Time | Coil Resistance | Must Operate Voltage | Switching Voltage | Contact Material | Release Time | Coil Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 2.4 VDC | 6.5 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 3.7 kOhms | 19.2 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 24 VDC | PC Pin |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 2.4 VDC | 8.3 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 2.88 kOhms | 16.8 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 24 VDC | PC Pin |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 0.6 VDC | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 240 Ohms | 4.8 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | PC Pin | ||
 Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 1.2 VDC | 16.7 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 720 Ohms | 8.4 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 12 VDC | PC Pin |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 0.9 VDC | 22.2 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 405 Ohms | 6.3 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 9 VDC | PC Pin |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 0.5 VDC | 30 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 167 Ohms | 4 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 5 VDC | PC Pin |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 0.5 VDC | 40 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 125 Ohms | 3.5 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 5 VDC | PC Pin |
Omron Electronics Inc-EMC Div | DPDT (2 Form C) | UL | 0.5 VDC | 40 mA | General Purpose | -40 °C | 70 °C | Sealed - Fully | Non Latching | Through Hole | 1 A | 5 ms | 125 Ohms | 3.5 VDC | 125 VAC 125 VDC | Gold (Au) Silver (Ag) | 5 ms | 5 VDC | PC Pin |
