LMZ14202H Series

SIMPLE SWITCHER® 6V to 42V, 2A High Output Voltage Power Module

Catalog

SIMPLE SWITCHER® 6V to 42V, 2A High Output Voltage Power Module

Part	Voltage - Input (Max) [Max]	Features	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Type	Package / Case	Control Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Applications	Current - Output (Max) [Max]	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Output	Frequency - Switching	Regulator Topology	Board Type	Supplied Contents	Main Purpose	Frequency - Switching [Max]
Texas Instruments LMZ14202HTZX/NOPB	42 V	UVLO	5 V	30 V	97 %	125 °C	-40 °C	TO-PMOD-7	Surface Mount	Non-Isolated PoL Module	TO-PMOD-7 Power Module	Active High Enable	1	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	6 V	ITE (Commercial)	2 A
Texas Instruments LMZ14202HEVAL/NOPB																							2 A	42 V	15 V	LMZ14202H	Non-Isolated	1	12 V	400 kHz	Buck	Fully Populated	Board(s)	DC/DC Step Down
Texas Instruments LMZ14202HTZ/NOPB	42 V	UVLO	5 V	30 V	97 %	125 °C	-40 °C	TO-PMOD-7	Surface Mount	Non-Isolated PoL Module	TO-PMOD-7 Power Module	Active High Enable	1	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	6 V	ITE (Commercial)	2 A

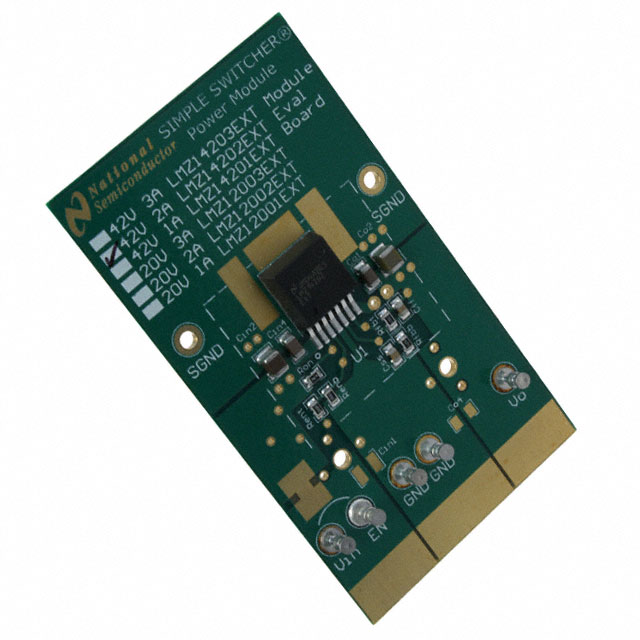

Texas Instruments LMZ14202EXTEVAL/NOPB																							2 A	42 V	6 V	LMZ14202EXT	Non-Isolated	1	3.3 V		Buck	Fully Populated	Board(s)	DC/DC Step Down	1 MHz
Texas Instruments LMZ14202TZX-ADJ/NOPB	42 V	UVLO	0.8 V	6 V	90 %	125 °C	-40 °C	TO-PMOD-7	Surface Mount	Non-Isolated PoL Module	TO-PMOD-7 Power Module	Active High Enable	1	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	6 V	ITE (Commercial)	2 A
Texas Instruments LMZ14202TZE-ADJ/NOPB	42 V	UVLO	0.8 V	6 V	90 %	125 °C	-40 °C	TO-PMOD-7	Surface Mount	Non-Isolated PoL Module	TO-PMOD-7 Power Module	Active High Enable	1	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	6 V	ITE (Commercial)	2 A
Texas Instruments LMZ14202EVAL/NOPB																							2 A	42 V	6 V	LMZ14202	Non-Isolated	1	3.3 V		Buck	Fully Populated	Board(s)	DC/DC Step Down	1 MHz
Texas Instruments LMZ14202TZ-ADJ/NOPB	42 V	UVLO	0.8 V	6 V	90 %	125 °C	-40 °C	TO-PMOD-7	Surface Mount	Non-Isolated PoL Module	TO-PMOD-7 Power Module	Active High Enable	1	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	6 V	ITE (Commercial)	2 A

Catalog

SIMPLE SWITCHER® 6V to 42V, 2A High Output Voltage Power Module

Key Features

• Integrated Shielded InductorSimple PCB LayoutFlexible Start-Up Sequencing Using External Soft-Start and Precision EnableProtection Against Inrush CurrentsInput UVLO and Output Short Circuit Protection–40°C to 125°C Junction Temperature RangeSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingLow Output Voltage RipplePin-to-Oin Compatible Family:LMZ14203H/2H/1H (42 V Maximum 3-A, 2-A,1-A)LMZ14203/2/1 (42 V Maximum 3-A, 2-A, 1-A)LMZ12003/2/1 (20 V Maximum 3-A, 2-A, 1-A)Fully Enabled for WEBENCH®Power DesignerElectrical SpecificationsUp to 2-A Output CurrentInput Voltage Range 6 V to 42 VOutput Voltage as Low as 5 VEfficiency up to 97%Performance BenefitsHigh Efficiency Reduces System HeatGenerationNo Compensation RequiredLow Package Thermal ResistanceLow Radiated EMI (EN 55022 Class B Tested)(1)Integrated Shielded InductorSimple PCB LayoutFlexible Start-Up Sequencing Using External Soft-Start and Precision EnableProtection Against Inrush CurrentsInput UVLO and Output Short Circuit Protection–40°C to 125°C Junction Temperature RangeSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingLow Output Voltage RipplePin-to-Oin Compatible Family:LMZ14203H/2H/1H (42 V Maximum 3-A, 2-A,1-A)LMZ14203/2/1 (42 V Maximum 3-A, 2-A, 1-A)LMZ12003/2/1 (20 V Maximum 3-A, 2-A, 1-A)Fully Enabled for WEBENCH®Power DesignerElectrical SpecificationsUp to 2-A Output CurrentInput Voltage Range 6 V to 42 VOutput Voltage as Low as 5 VEfficiency up to 97%Performance BenefitsHigh Efficiency Reduces System HeatGenerationNo Compensation RequiredLow Package Thermal ResistanceLow Radiated EMI (EN 55022 Class B Tested)(1)

Description

The LMZ14202H SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 2-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14202H is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ14202H can accept an input voltage rail between 6 V and 42 V and deliver an adjustable and highly accurate output voltage as low as 5 V. The LMZ14202H only requires three external resistors and four external capacitors to complete the power solution. The LMZ14202H is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz. The LMZ14202H SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 2-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14202H is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ14202H can accept an input voltage rail between 6 V and 42 V and deliver an adjustable and highly accurate output voltage as low as 5 V. The LMZ14202H only requires three external resistors and four external capacitors to complete the power solution. The LMZ14202H is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.
