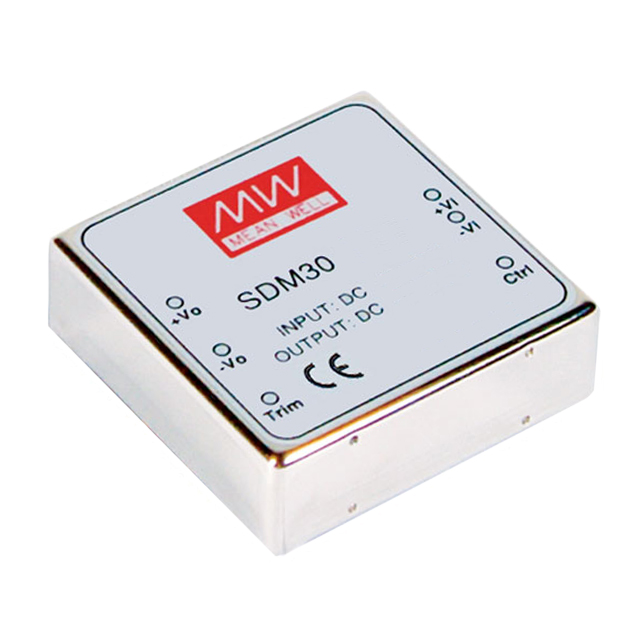

SDM30 Series

Catalog

DC/DC CONVERTER

Part	Efficiency	Type	Power (Watts)	Applications	Number of Outputs	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Approval Agency	Current - Output (Max)	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]

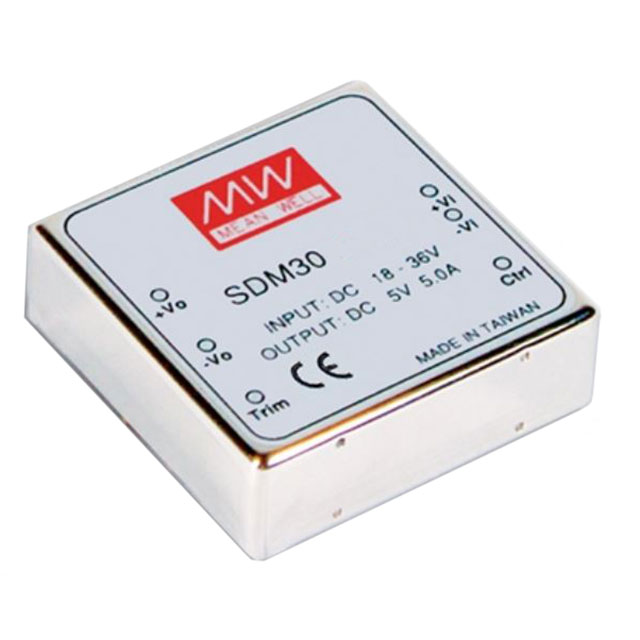

MEAN WELL USA Inc. SDM30-12S03	77 %	Isolated Module	17 W	ITE (Commercial)	1	3.3 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module 6 Leads	85 °C	-25 °C	1000 V	CE EAC UKCA	5 A	18 V	Through Hole
MEAN WELL USA Inc. SDM30-48S05	80 %	Isolated Module	25 W	ITE (Commercial)	1	5 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module 6 Leads	85 °C	-25 °C	1000 V	CE EAC UKCA	5 A	72 V	Through Hole	36 V
MEAN WELL USA Inc. SDM30-48S03	80 %	Isolated Module	17 W	ITE (Commercial)	1	3.3 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module 6 Leads	85 °C	-25 °C	1000 V	CE EAC UKCA	5 A	72 V	Through Hole	36 V
MEAN WELL USA Inc. SDM30-24S05	79 %	Isolated Module	25 W	ITE (Commercial)	1	5 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module 6 Leads	85 °C	-25 °C	1000 V	CE EAC UKCA	5 A	36 V	Through Hole	18 V
MEAN WELL USA Inc. SDM30-12S5	77 %	Isolated Module	25 W	ITE (Commercial)	1	5 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module	85 °C	-25 °C	1000 V		5 A	18 V	Through Hole		OCP OVP Remote On/Off SCP
MEAN WELL USA Inc. SDM30-24S5	79 %	Isolated Module	25 W	ITE (Commercial)	1	5 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module	85 °C	-25 °C	1000 V		5 A	36 V	Through Hole	18 V	OCP OVP Remote On/Off SCP
MEAN WELL USA Inc. SDM30-12S3	77 %	Isolated Module	17 W	ITE (Commercial)	1	3.3 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module	85 °C	-25 °C	1000 V		5 A	18 V	Through Hole		OCP OVP Remote On/Off SCP
MEAN WELL USA Inc. SDM30-12S15	80 %	Isolated Module	26 W	ITE (Commercial)	1	15 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module	85 °C	-25 °C	1000 V			18 V	Through Hole		OCP OVP Remote On/Off SCP	1.7 A
MEAN WELL USA Inc. SDM30-12S05	77 %	Isolated Module	25 W	ITE (Commercial)	1	5 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module 6 Leads	85 °C	-25 °C	1000 V	CE EAC UKCA	5 A	18 V	Through Hole
MEAN WELL USA Inc. SDM30-24S15	83 %	Isolated Module	30 Watts	ITE (Commercial)	1	15 V	2 in	2 in	0.63 in	50.8 mm	50.8 mm	16 mm	8-DIP Module	85 °C	-25 °C	1000 V			36 V	Through Hole	18 V	OCP OVP Remote On/Off SCP	2 A
