T-TOP81 Series

Catalog

THERM PAD 160MMX160MM PURP

Part	Shelf Life Start	Storage/Refrigeration Temperature	Shelf Life	Thermal Conductivity	Material	Outline [y]	Outline [x]	Shape	Adhesive	Color	Thickness	Thickness	Type	Usage
Shiu Li Technology Co., Ltd. T-TOP81-160-160-2.5	Date of Shipment	Room Temperature	120 Months	8 W/m-K	Silicone	160 mm	160 mm	Square	Tacky - Both Sides	Purple	0.098 in	2.489 mm	Gap Filler Pad Sheet	Thermally Conductive
Shiu Li Technology Co., Ltd. T-TOP81-160-160-1.5	Date of Shipment	Room Temperature	120 Months	8 W/m-K	Silicone	160 mm	160 mm	Square	Tacky - Both Sides	Purple	0.0591 "	1.5 mm	Gap Filler Pad Sheet	Thermally Conductive

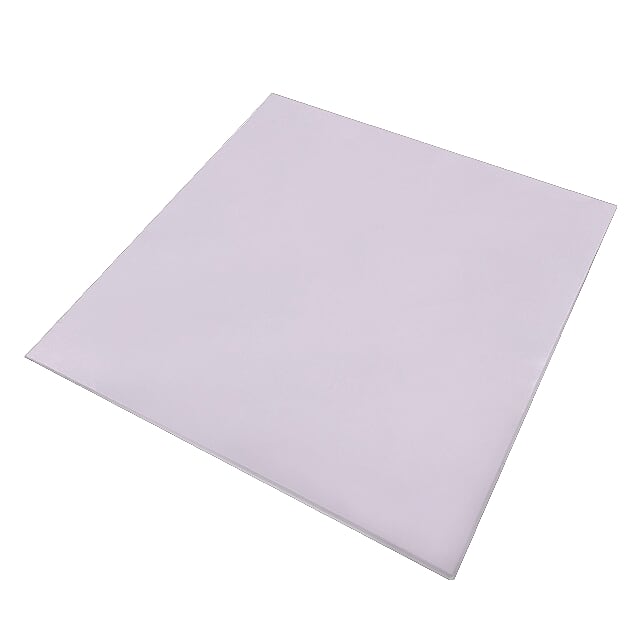

Shiu Li Technology Co., Ltd. T-TOP81-160-160-0.5	Date of Shipment	Room Temperature	120 Months	8 W/m-K	Silicone	160 mm	160 mm	Square	Tacky - Both Sides	Purple	0.02 in	0.508 mm	Gap Filler Pad Sheet	Thermally Conductive
Shiu Li Technology Co., Ltd. T-TOP81-160-160-3.0	Date of Shipment	Room Temperature	120 Months	8 W/m-K	Silicone	160 mm	160 mm	Square	Tacky - Both Sides	Purple	0.118 in	3 mm	Gap Filler Pad Sheet	Thermally Conductive
Shiu Li Technology Co., Ltd. T-TOP81-160-160-1.0	Date of Shipment	Room Temperature	120 Months	8 W/m-K	Silicone	160 mm	160 mm	Square	Tacky - Both Sides	Purple	0.039 in	0.991 mm	Gap Filler Pad Sheet	Thermally Conductive
Shiu Li Technology Co., Ltd. T-TOP81-160-160-2.0	Date of Shipment	Room Temperature	120 Months	8 W/m-K	Silicone	160 mm	160 mm	Square	Tacky - Both Sides	Purple	0.079 in	2 mm	Gap Filler Pad Sheet	Thermally Conductive
