RQ1A070 Series

Catalog

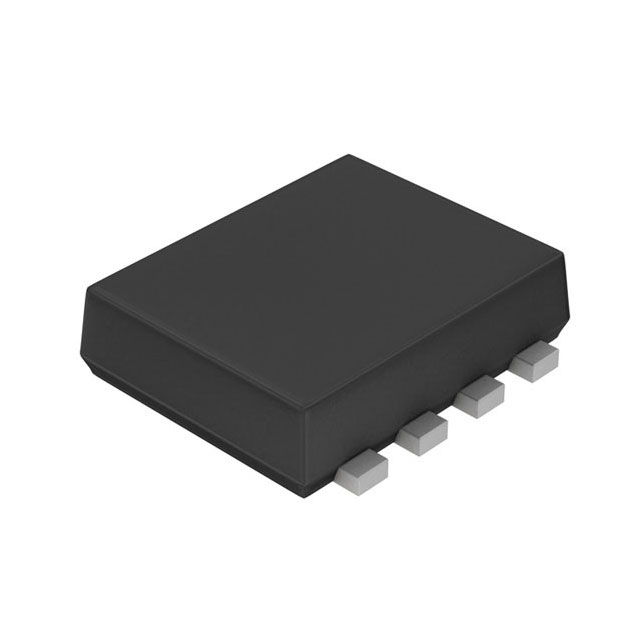

MOSFET P-CH 12V 7A TSMT8

Part	Power Dissipation (Max) [Max]	Mounting Type	Operating Temperature	Technology	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	FET Type	Supplier Device Package	Vgs (Max)	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs [Max]
Rohm Semiconductor RQ1A070ZPTR	700 mW	Surface Mount	150 °C	MOSFET (Metal Oxide)	58 nC	1.5 V 4.5 V	7 A	P-Channel	TSMT8	10 V	12 V	1 V	7400 pF	12 mOhm
