0461-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.020 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Termination	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0461-0-15-01-11-02-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Standard Tail	Tin-Lead	14.61 mm	0.575 in	2.54 µm	100 µin	Solder
Mill-Max Manufacturing Corp. 0461-0-15-01-21-14-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Gold	14.61 mm	0.575 in	0.25 Ám	10 Áin	Solder	0.56 mm
Mill-Max Manufacturing Corp. 0461-0-15-01-21-02-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Tin-Lead	14.61 mm	0.575 in	2.54 µm	100 µin	Solder	0.56 mm
Mill-Max Manufacturing Corp. 0461-0-15-15-11-14-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Gold	14.61 mm	0.575 in	0.25 Ám	10 Áin	Solder	0.56 mm

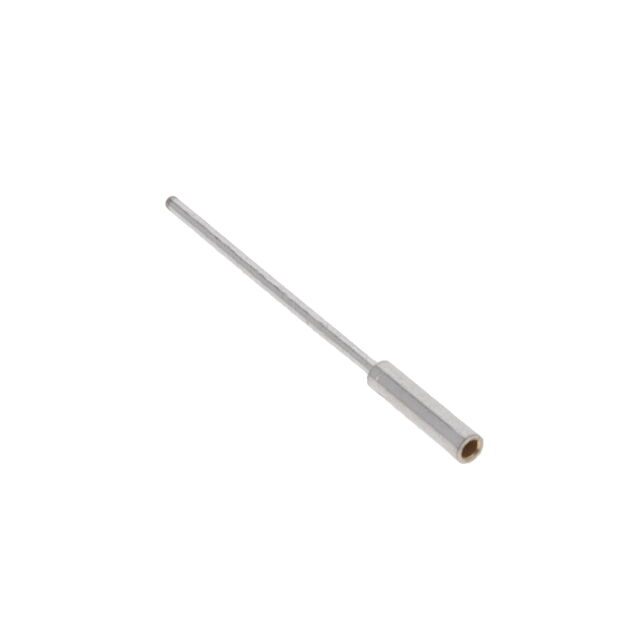

Mill-Max Manufacturing Corp. 0461-0-15-80-21-27-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Gold	14.61 mm	0.575 in	0.76 Ám	30 Áin	Solder	0.56 mm

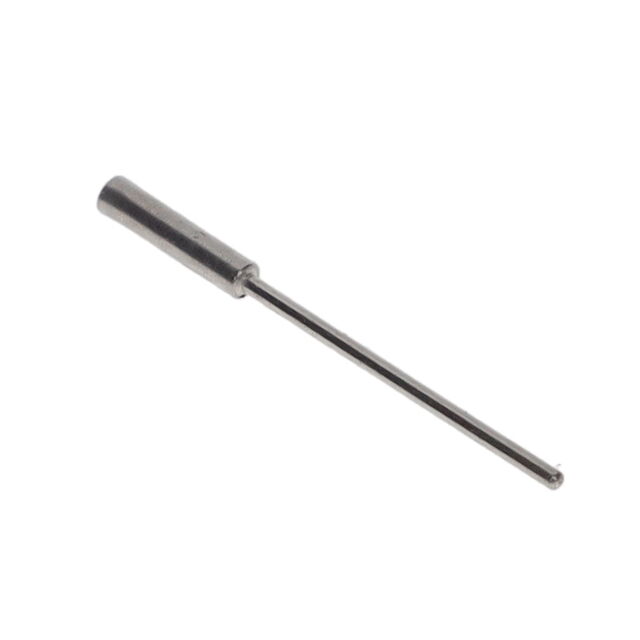

Mill-Max Manufacturing Corp. 0461-0-15-80-11-84-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Tin	14.61 mm	0.575 in	2.54 µm	100 µin	Solder	0.56 mm

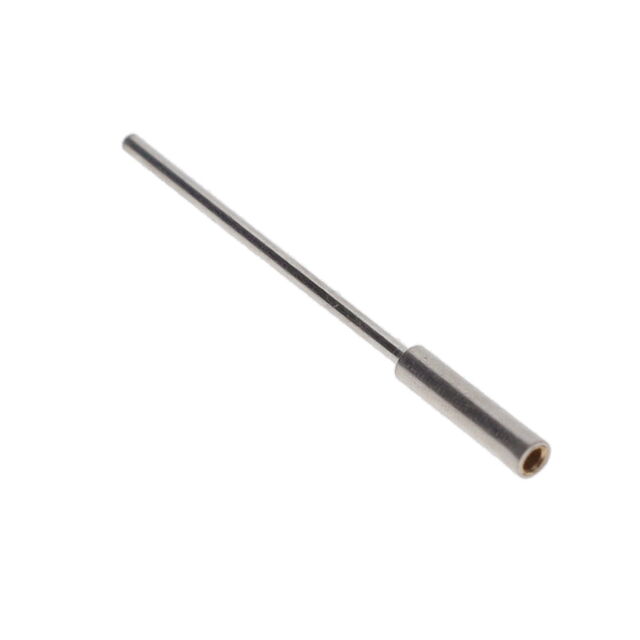

Mill-Max Manufacturing Corp. 0461-0-15-80-11-27-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Gold	14.61 mm	0.575 in	0.76 Ám	30 Áin	Solder	0.56 mm
Mill-Max Manufacturing Corp. 0461-0-15-01-11-14-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	Standard Tail	Gold	14.61 mm	0.575 in	0.25 Ám	10 Áin	Solder

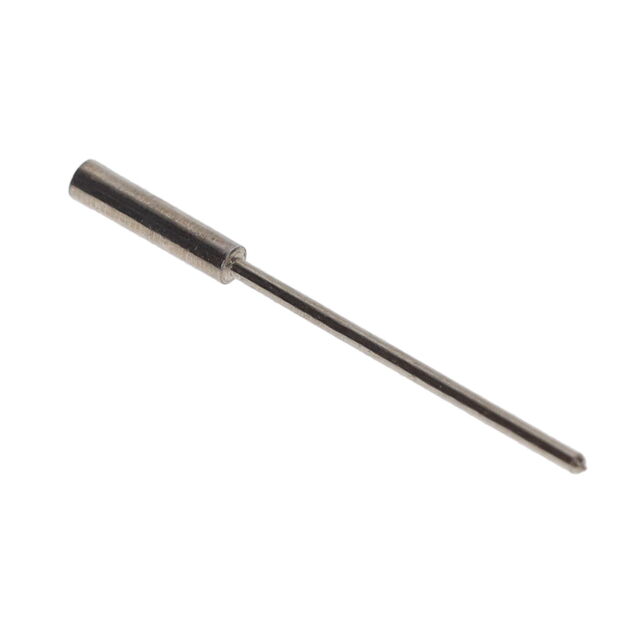

Mill-Max Manufacturing Corp. 0461-0-15-01-21-27-04-0	-55 C	125 °C	Beryllium Copper	0.46 mm	0.018 in	3.81 mm	0.15 in	0.031 in	0.79 mm	0.041 in	1.04 mm	0.02 in	0.51 mm	0.022 in	0.38 mm	0.015 "		Standard Tail	Gold	14.61 mm	0.575 in	0.76 Ám	30 Áin	Solder	0.56 mm
