TL3350 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPST-NO 0.02A 30V
| Part | Switch Travel | Mechanical Life | Actuator Material | Operating Force | Actuator Type | Switch Function | Outline [y] | Outline [x] | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Mounting Type | Illumination | Termination Style | Contact Rating @ Voltage | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

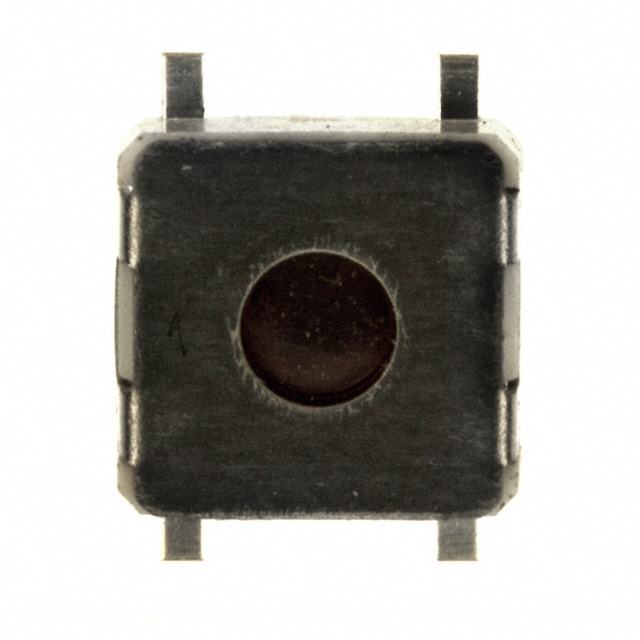

 E-Switch | 0.3 mm 0.55 mm | 10000 Steps | Polyamide (PA) Nylon | 100 gf | Standard | Off-Mom-Mom | 6.2 mm | 6.5 mm | -20 ░C | 70 °C | SPST-NO x 2 | Surface Mount | Non-Illuminated | Gull Wing | 0.02 A 30 VDC | 2 mm | Top Actuated | |

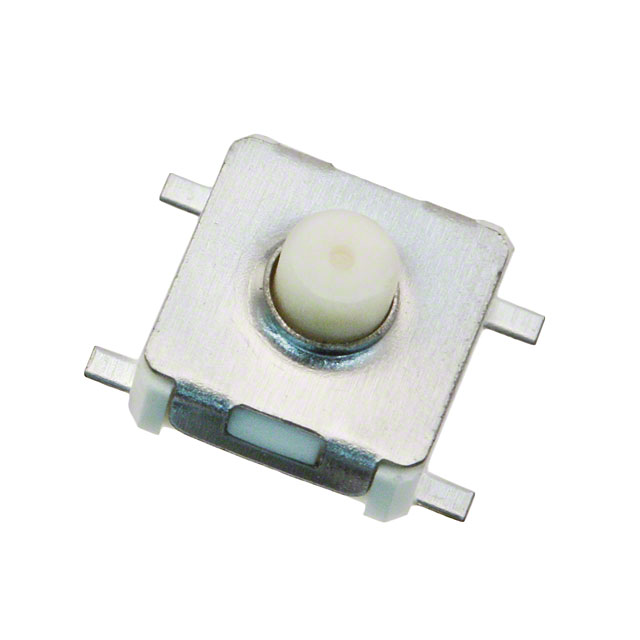

 E-Switch | 0.3 mm 0.55 mm | 10000 Steps | Polyamide (PA) Nylon | 100 gf | Standard | Off-Mom-Mom | 6.2 mm | 6.5 mm | -20 ░C | 70 °C | SPST-NO x 2 | Surface Mount | Non-Illuminated | Gull Wing | 0.02 A 30 VDC | Top Actuated | 3.8 mm |
