767007 Series

Catalog

CONN PLUG 114POS SMD GOLD

Part	Number of Rows [custom]	Features	Mated Stacking Heights	Pitch	Pitch	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish

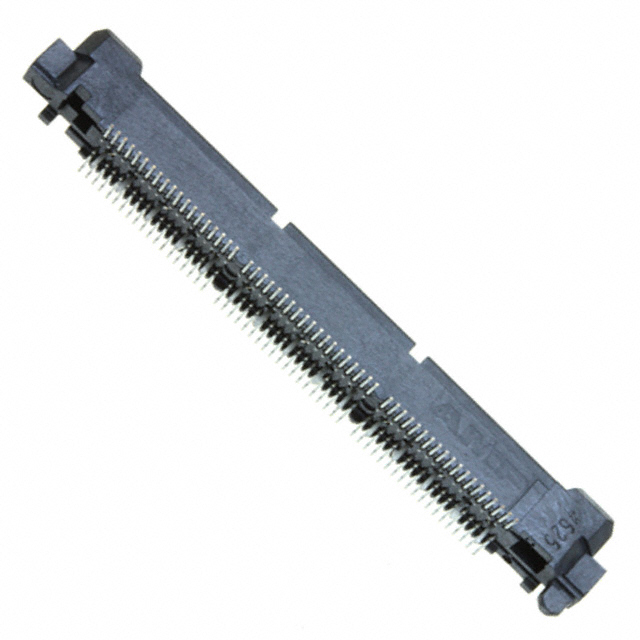

TE Connectivity AMP Connectors 1-767007-0	2	Board Guide Ground Bus (Plane)	6.6 mm 15.62 mm	0.64 mm	0.025 in	114	30 Áin	0.76 Ám	Surface Mount	Plug Outer Shroud Contacts	6.38 mm	0.251 in	Gold

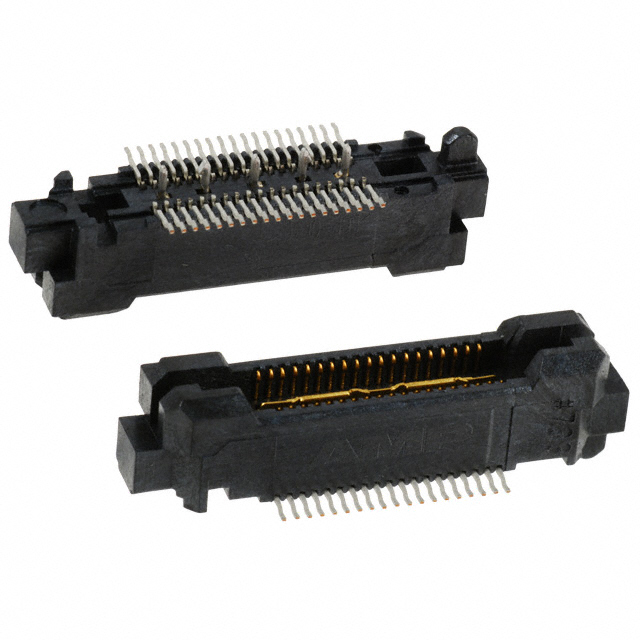

TE Connectivity AMP Connectors 767007-8	2	Board Guide Ground Bus (Plane)	6.6 mm 15.62 mm	0.64 mm	0.025 in	38	30 Áin	0.76 Ám	Surface Mount	Plug Outer Shroud Contacts	6.38 mm	0.251 in	Gold

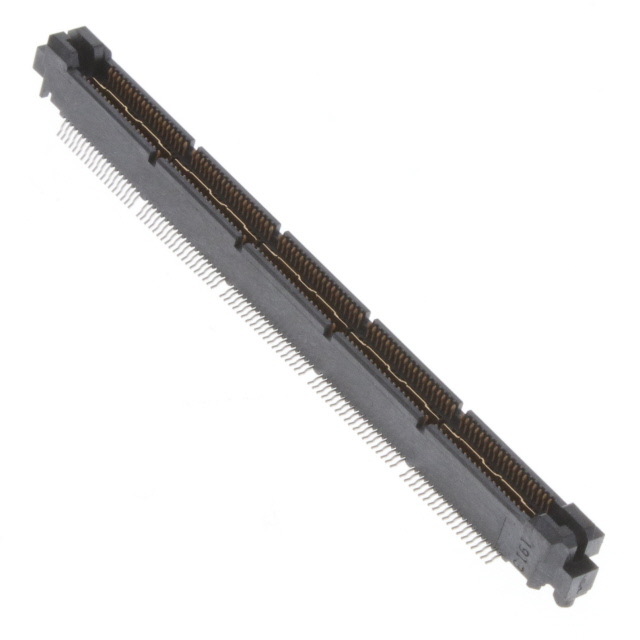

TE Connectivity AMP Connectors 1-767007-2	2	Board Guide Ground Bus (Plane)	6.6 mm 15.62 mm	0.64 mm	0.025 in	190	30 Áin	0.76 Ám	Surface Mount	Plug Outer Shroud Contacts	6.38 mm	0.251 in	Gold
