630W9W Series
Manufacturer: EDAC Inc.
Beta
⌘K

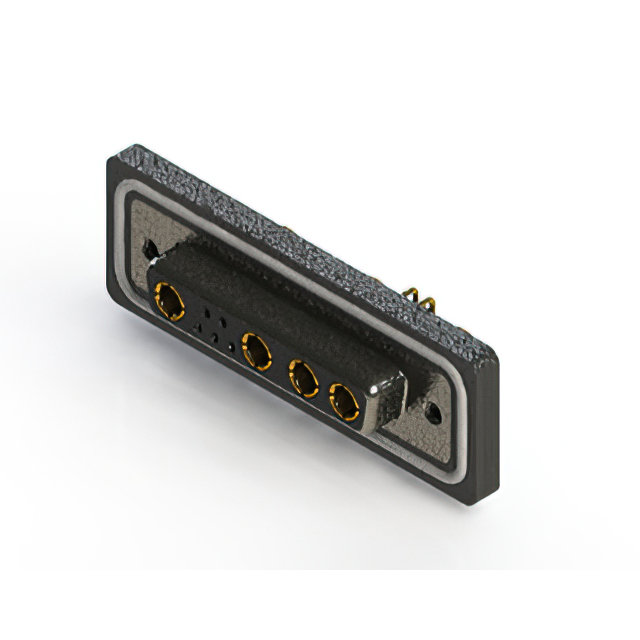

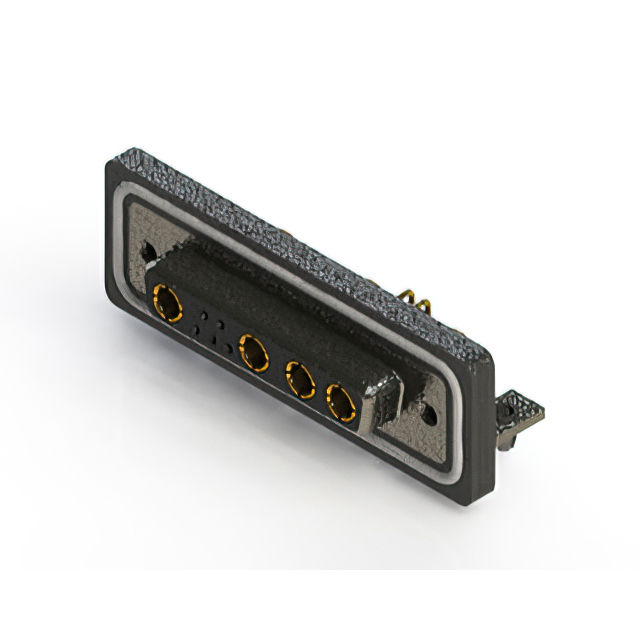

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Dielectric Material | Number of Positions [custom] | Number of Positions [custom] | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Shell Material, Finish | Features | Termination | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Contact Type | Flange Feature | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Ingress Protection | Contact Finish | Connector Type | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A 40 A | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A 40 A | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 2 | Nickel Plated Steel | Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A 40 A | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Mounting Brackets Shielded | Solder | Right Angle Through Hole | UL94 V-0 | 5 A 40 A | Signal and Power | Housing/Shell (M3) | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | 20A 5A | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal and Power | Housing/Shell (M3) | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | 10A 5A | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A 40 A | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | 10A 5A | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 15 µin | 0.38 µm | 2 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal and Power | Housing/Shell | 4-40 | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | 20A 5A | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 5 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | Nickel Plated Steel | Shielded | Solder | Panel Mount Right Angle Through Hole | UL94 V-0 | Signal and Power | Housing/Shell (M3) | DB B - 9W4 | 3 | IP67 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | 10A 5A |
