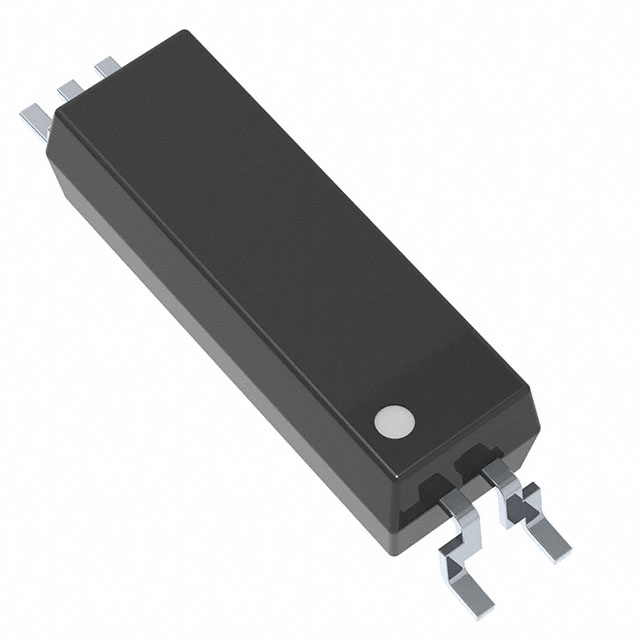

RV1S9213A Series

IPM Drive Photocouplers (Optocouplers)

Manufacturer: Renesas Electronics Corporation

Catalog

IPM Drive Photocouplers (Optocouplers)

Part	Package / Case	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Inputs - Side 1/Side 2 [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Data Rate	Supplier Device Package	Mounting Type	Number of Channels	Output Type	Propagation Delay tpLH / tpHL (Max) [Max]	Input Type	Common Mode Transient Immunity (Min) [Min]
Renesas Electronics Corporation RV1S9213ACCSP-10YC#SC0	5-SMD Gull Wing	20 mA	125 °C	-40 °C	1	4.5 V	25 V	15 mA	1.56 V	1 Mbps	5-LSSO	Surface Mount	1	Open Collector Schottky Clamped	500 ns 750 ns	DC	50 kV/çs
Renesas Electronics Corporation RV1S9213ACCSP-10YV#SC0	5-SMD Gull Wing	20 mA	125 °C	-40 °C	1	4.5 V	25 V	15 mA	1.56 V	1 Mbps	5-LSSO	Surface Mount	1	Open Collector Schottky Clamped	500 ns 750 ns	DC	50 kV/çs
Renesas Electronics Corporation RV1S9213ACCSP-10YV#KC0	5-SMD Gull Wing	20 mA	125 °C	-40 °C	1	4.5 V	25 V	15 mA	1.56 V	1 Mbps	5-LSSO	Surface Mount	1	Open Collector Schottky Clamped	500 ns 750 ns	DC	50 kV/çs
Renesas Electronics Corporation RV1S9213ACCSP-10YC#KC0	5-SMD Gull Wing	20 mA	125 °C	-40 °C	1	4.5 V	25 V	15 mA	1.56 V	1 Mbps	5-LSSO	Surface Mount	1	Open Collector Schottky Clamped	500 ns 750 ns	DC	50 kV/çs

Catalog

IPM Drive Photocouplers (Optocouplers)

Description

The RV1S9213A is an optically coupled isolator containing an AlGaAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The RV1S9213A is designed specifically for high common mode transient immunity (CMR) and low pulse width distortion with operating temperature. It is suitable for IPM drive. This package is very small and thin with long creepage distance(8. 2mm). This small product is suitable for various interface circuits which require surface mounting and high-density mounting.
