OSTTS05 Series

Catalog

TERM BLOCK PLUG 5POS 3.81MM

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Housing Material	Number of Positions	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Contact Mating Finish	Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Voltage - UL	Mounting Type	Wire Gauge or Range - mm²	Number of Levels	Color	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

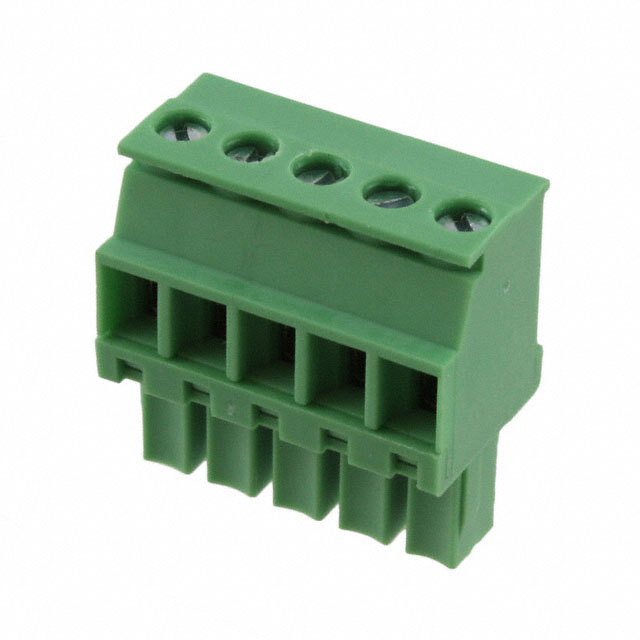

On Shore Technology Inc. OSTTS05315B	7 mm	6 mm	Brass	1.7 Lb-In	0.2 Nm	1.5 mm˛	Brass	5	Screw	28 AWG	16 AWG	5	Nickel	Plug Female Sockets	115 °C	-40 C	3.81 mm	0.15 in	300 V	Free Hanging (In-Line)	1.5 mm²	1	Green
On Shore Technology Inc. OSTTS05115A	7 mm	6 mm	Brass	1.7 Lb-In	0.2 Nm		Brass	5	Screw	28 AWG	16 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	3.5 mm	0.138 "	300 V	Free Hanging (In-Line)	1.5 mm²	1	Green
On Shore Technology Inc. OSTTS05715C	7 mm	6 mm	Brass	3.5 Lb-In	0.4 Nm		Brass	5	Screw	24 AWG	12 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	5 mm	0.197 in	300 V	Free Hanging (In-Line)		1	Green	UL94 V-0	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS05515D	7 mm	6 mm	Brass	3.5 Lb-In	0.4 Nm		Brass	5	Screw	24 AWG	12 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	5.08 mm	0.2 in	300 V	Free Hanging (In-Line)		1	Green	UL94 V-0	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS05315D	7 mm	6 mm	Brass	1.7 Lb-In	0.2 Nm	1.5 mm˛	Brass	5	Screw	28 AWG	16 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	3.81 mm	0.15 in	300 V	Free Hanging (In-Line)	1.5 mm²	1	Green	UL94 V-0
On Shore Technology Inc. OSTTS05715D	7 mm	6 mm	Brass	3.5 Lb-In	0.4 Nm		Brass	5	Screw	24 AWG	12 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	5 mm	0.197 in	300 V	Free Hanging (In-Line)		1	Green	UL94 V-0	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS05A15A	7 mm	6 mm	Brass	3.5 Lb-In	0.4 Nm		Brass	5	Screw	24 AWG	12 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	7.5 mm	0.295 in	300 V	Free Hanging (In-Line)		1		UL94 V-0
On Shore Technology Inc. OSTTS05715B	7 mm	6 mm	Brass	3.5 Lb-In	0.4 Nm		Brass	5	Screw	24 AWG	12 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	5 mm	0.197 in	300 V	Free Hanging (In-Line)		1	Green	UL94 V-0	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS05310B	7 mm	6 mm	Brass	1.7 Lb-In	0.2 Nm	1.5 mm˛	Brass	5	Screw	28 AWG	16 AWG	5	Nickel	Plug Female Sockets	115 °C	-40 C	3.81 mm	0.15 in	300 V	Free Hanging (In-Line)	1.5 mm²	1	Black
On Shore Technology Inc. OSTTS05015A	7 mm	6 mm	Brass	3.5 Lb-In	0.4 Nm		Brass	5	Screw	24 AWG	12 AWG	5		Plug Female Sockets	105 ░C	-30 ░C	7.62 mm	0.3 in	300 V	Free Hanging (In-Line)		1		UL94 V-0
