5273 Series
SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits
Manufacturer: Molex
Catalog
SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits
Beta
⌘K
SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits
SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits
SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits
| Part | Connector Type | Contact Length - Post | Contact Length - Post | Number of Positions | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Contact Finish - Post | Insulation Height | Insulation Height | Contact Shape | Number of Positions Loaded | Style | Contact Material | Insulation Color | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Rows | Contact Length - Mating | Contact Length - Mating | Insulation Material | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Header | 0.142 in | 3.6 mm | 5 | UL94 V-2 | 0.687 in | 17.45 mm | Tin | 12.25 mm | 0.482 in | Square | All | Board to Cable/Wire | Brass | Natural | Male Pin | 5.08 µm | 200 µin | Shrouded - 1 Wall | Solder | Through Hole | 3.96 mm | 0.156 in | Friction Lock | 1 | 0.419 in | 10.65 mm | Nylon 6/6 Polyamide (PA66) | |
 Molex | Header | 0.142 in | 3.6 mm | 2 | UL94 V-2 | 0.687 in | 17.45 mm | Tin | 12.25 mm | 0.482 in | Square | All | Board to Cable/Wire | Brass | Natural | Male Pin | 5.08 µm | 200 µin | Shrouded - 1 Wall | Solder | Through Hole | 3.96 mm | 0.156 in | Friction Lock | 1 | 0.419 in | 10.65 mm | Nylon 6/6 Polyamide (PA66) | Automotive General Purpose Industrial Medical Telecommunications |

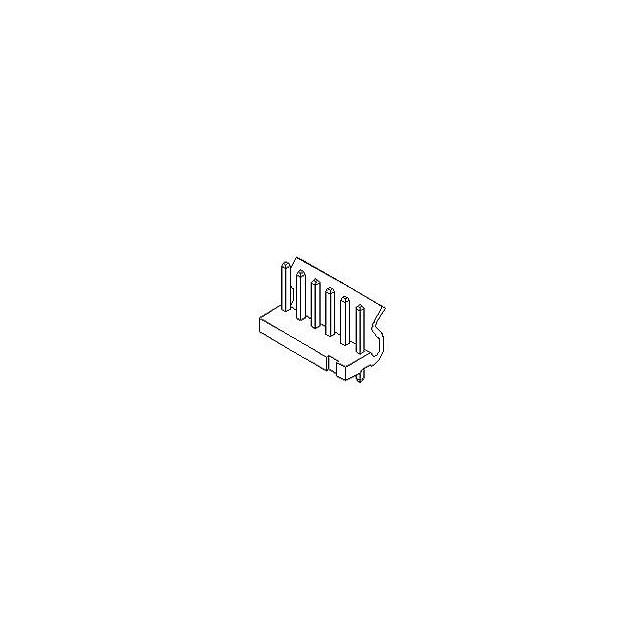

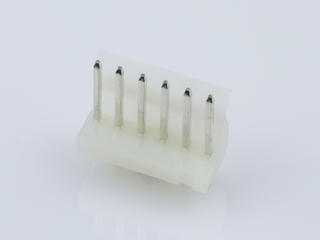

 Molex | Header | 0.142 in | 3.6 mm | 6 | UL94 V-2 | 0.687 in | 17.45 mm | Tin | 12.25 mm | 0.482 in | Square | All | Board to Cable/Wire | Brass | Natural | Male Pin | 5.08 µm | 200 µin | Shrouded - 1 Wall | Solder | Through Hole | 3.96 mm | 0.156 in | Friction Lock | 1 | 0.419 in | 10.65 mm | Nylon 6/6 Polyamide (PA66) | Automotive General Purpose Industrial Medical Telecommunications |
 Molex | Header | 0.142 in | 3.6 mm | 4 | UL94 V-2 | 0.687 in | 17.45 mm | Tin | 12.25 mm | 0.482 in | Square | All | Board to Cable/Wire | Brass | Natural | Male Pin | 5.08 µm | 200 µin | Shrouded - 1 Wall | Solder | Through Hole | 3.96 mm | 0.156 in | Friction Lock | 1 | 0.419 in | 10.65 mm | Nylon 6/6 Polyamide (PA66) |
