BCH Series

Catalog

PLUGGABLE TERMINAL BLOCKS BCH-500VF-15 BK

...

Part	Header Orientation	Pitch	Pitch	Features	Voltage - IEC	Positions Per Level	Number of Levels	Contact Mating Finish	Number of Positions	Mounting Type	Voltage - UL	Type	Current - IEC	Termination Style	Color	Housing Material	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Current - UL
Phoenix Contact 5452486	Vertical	0.197 in	5 mm	Mating Flange	320 V	15	1	Tin	15	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Black
Phoenix Contact 5445261	90° Right Angle	0.197 in	5 mm	Mating Flange	400 V	3	1	Tin		Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Green	Polyamide (PA) Nylon	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0
Phoenix Contact 5452301	90° Right Angle	0.2 in	5.08 mm		400 V	13	1	Tin	13	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black	Polyamide (PA) Nylon	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0
Phoenix Contact 5452030	90° Right Angle	0.15 in	3.81 mm		160 V	5	1	Tin	5	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	8 A	Solder	Black							8 A
Phoenix Contact 5452144	Vertical	0.197 in	5 mm		320 V	16	1	Tin	16	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Black
Phoenix Contact 5452462	Vertical	0.15 in	3.81 mm	Mating Flange	320 V	10	1	Tin	10	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	8 A	Solder	Black							8 A
Phoenix Contact 5452311	90° Right Angle	0.2 in	5.08 mm		400 V	23	1	Tin	23	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black	Polyamide (PA) Nylon	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0

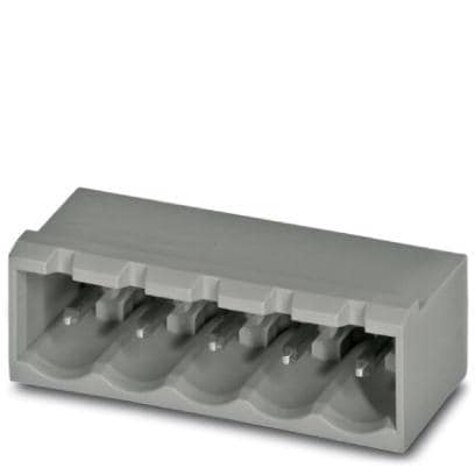

Phoenix Contact 5445643	90° Right Angle	0.197 in	5 mm		400 V	23	1	Tin	23	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	12 A	Solder	Green	Polyamide (PA) Nylon					UL94 V-0
Phoenix Contact 5452309	90° Right Angle	0.2 in	5.08 mm		400 V	21	1	Tin	21	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black

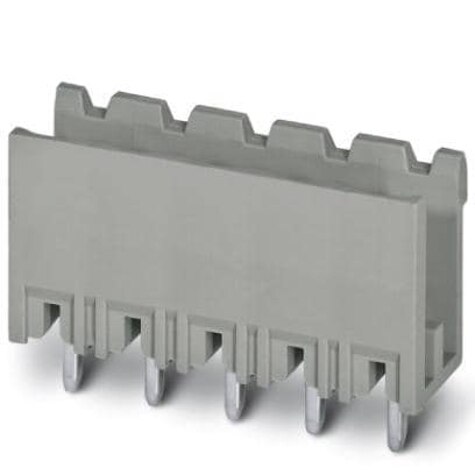

Phoenix Contact 5452406	Vertical	0.197 in	5 mm		320 V	19	1	Tin	19	Through Hole	300 V	Header Male Pins Shrouded (2 Side)	12 A	Solder	Black
