OSTTE04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 4POS SIDE ENT 3.5MM PCB
| Part | Screw Material - Plating | Contact Material - Plating | Clamp Material - Plating [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Torque - Screw | Torque - Screw | Screw Thread | Housing Material | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Features | Voltage | Color | Current | Wire Termination | Pitch | Pitch | Number of Levels | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

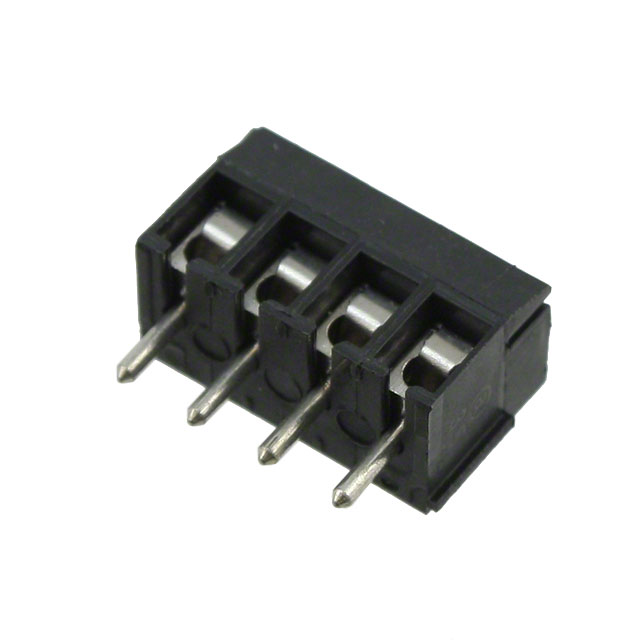

 On Shore Technology Inc. | Steel - Zinc Plated | Tin Plated | Stainless Steel | 115 °C | -40 C | 1.7 Lb-In | 0.2 Nm | M2 | Thermoplastic | 4 | 26 AWG | 16 AWG | Through Hole | Interlocking (Side) | 125 V | Black | 10 A | Screw - Leaf Spring Wire Guard | 3.5 mm | 0.138 " | 1 | Horizontal with Board |
 On Shore Technology Inc. | Steel - Zinc Plated | Brass - Tin Plated | Stainless Steel | 115 °C | -40 C | 1.7 Lb-In | 0.2 Nm | M2 | 4 | 26 AWG | 16 AWG | Through Hole | Interlocking (Side) | 125 V | 10 A | Screw - Leaf Spring Wire Guard | 7 mm | 0.276 in | 1 | Horizontal with Board | ||

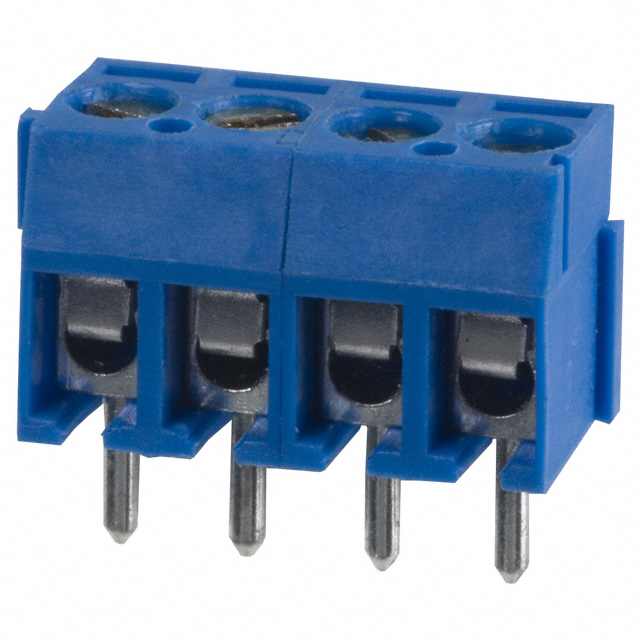

 On Shore Technology Inc. | Steel - Zinc Plated | Brass - Tin Plated | Stainless Steel | 105 ░C | -30 ░C | 1.7 Lb-In | 0.2 Nm | M2 | Thermoplastic | 4 | 26 AWG | 16 AWG | Through Hole | Interlocking (Side) | 125 V | Blue | 10 A | Screw - Leaf Spring Wire Guard | 3.5 mm | 0.138 " | 1 | Horizontal with Board |
