292175 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

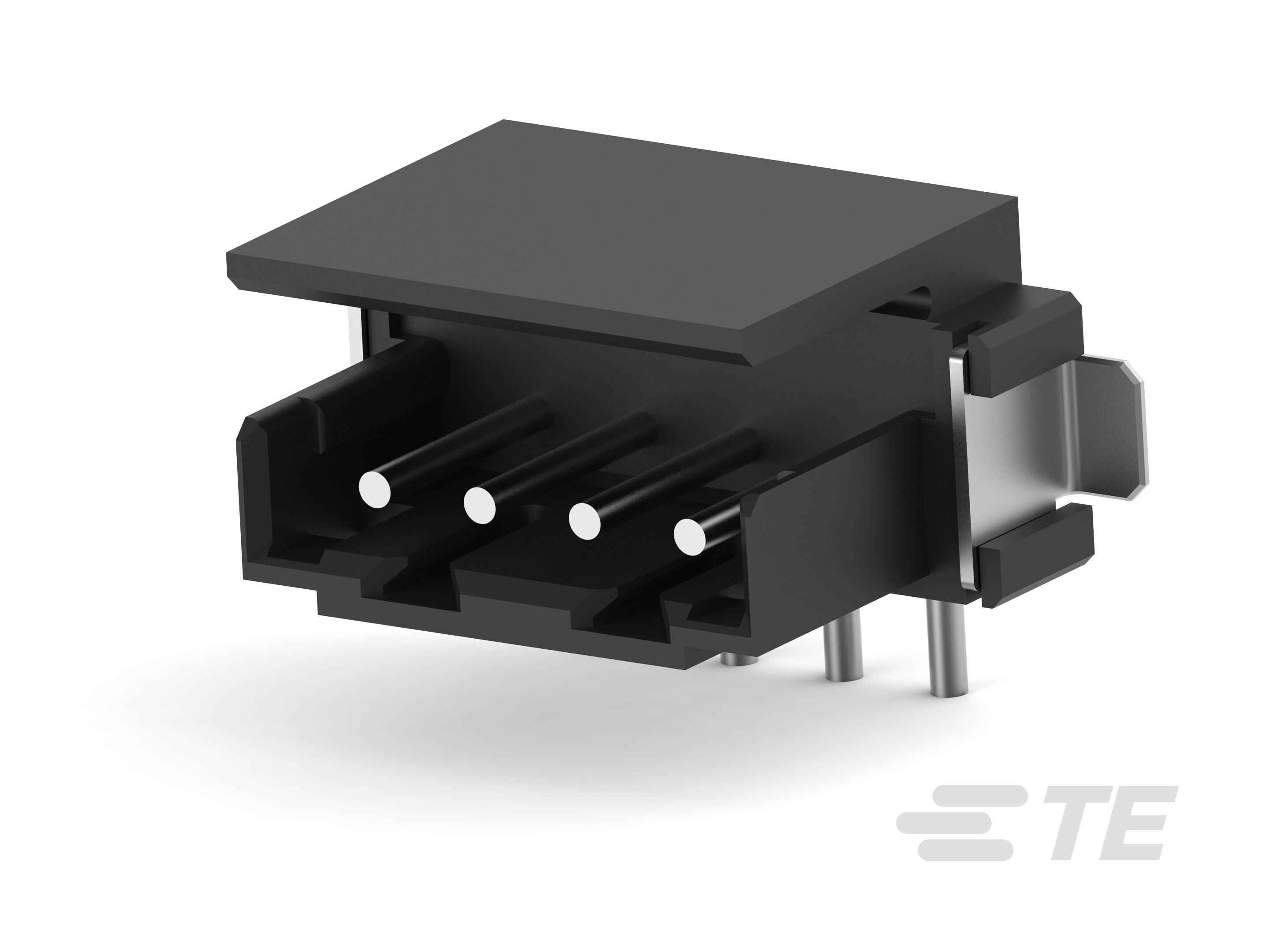

CT BOX HDR V SMT 4P O/TAPE BLA

Part	Current Rating (Amps)	Contact Finish - Post	Contact Type	Number of Positions	Shrouding	Style	Insulation Material	Features	Contact Shape	Connector Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Voltage Rating	Number of Rows	Applications	Termination	Contact Material	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating
TE Connectivity Raychem Cable Protection 2-292175-4	Varies by Wire Gauge	Tin	Male Pin	4	Shrouded - 4 Wall	Board to Cable/Wire	Glass Filled Nylon 6T Polyamide (PA6T)	Solder Retention	Square	Header	Black	0.079 in	2 mm	Surface Mount	125 VAC	1	General Purpose	Solder	Brass	UL94 V-0	All	Detent Lock	0.177 in	4.5 mm

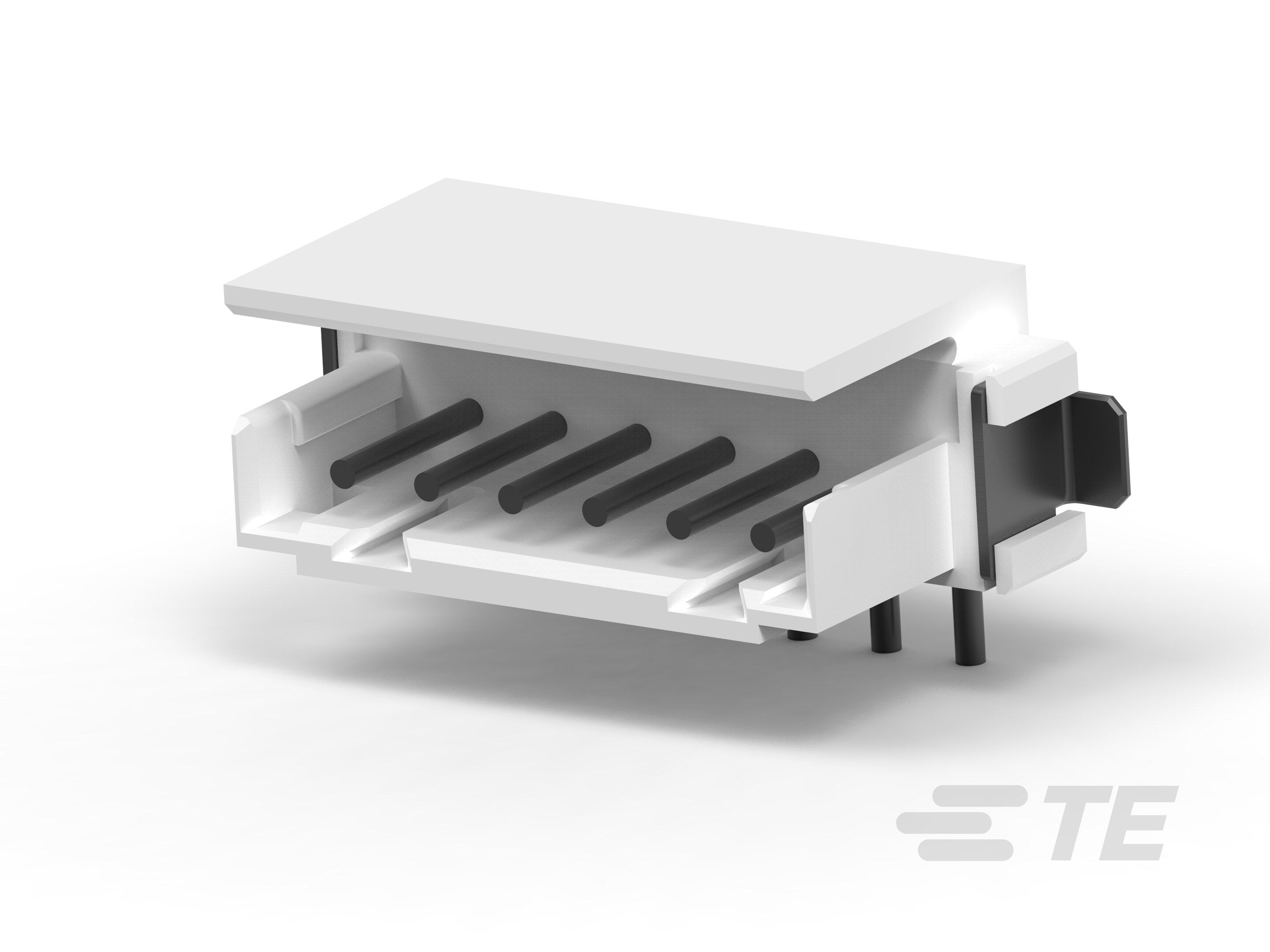

TE Connectivity Raychem Cable Protection 292175-6	Varies by Wire Gauge	Tin	Male Pin	6	Shrouded - 4 Wall	Board to Cable/Wire	Glass Filled Nylon 6T Polyamide (PA6T)	Solder Retention	Square	Header	Natural	0.079 in	2 mm	Surface Mount	125 VAC	1	General Purpose	Solder	Brass	UL94 V-0	All	Detent Lock	0.177 in	4.5 mm

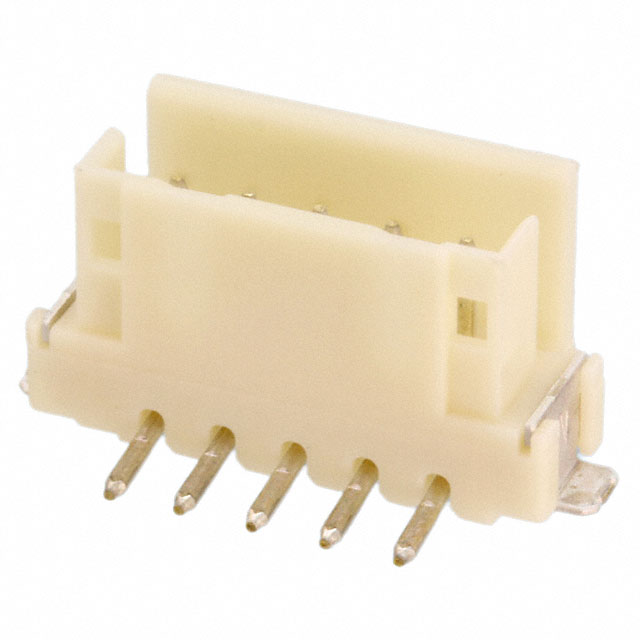

TE Connectivity Raychem Cable Protection 292175-5	Varies by Wire Gauge	Tin	Male Pin		Shrouded - 4 Wall	Board to Cable/Wire	Glass Filled Nylon 6T Polyamide (PA6T)	Solder Retention	Square	Header	Natural	0.079 in	2 mm	Surface Mount	125 VAC	1	General Purpose	Solder	Brass	UL94 V-0	All	Detent Lock	0.177 in	4.5 mm
TE Connectivity Raychem Cable Protection 2-292175-2	Varies by Wire Gauge	Tin	Male Pin	2	Shrouded - 4 Wall	Board to Cable/Wire	Glass Filled Nylon 6T Polyamide (PA6T)	Solder Retention	Square	Header	Black	0.079 in	2 mm	Surface Mount	125 VAC	1	General Purpose	Solder	Brass	UL94 V-0	All	Detent Lock	0.177 in	4.5 mm
