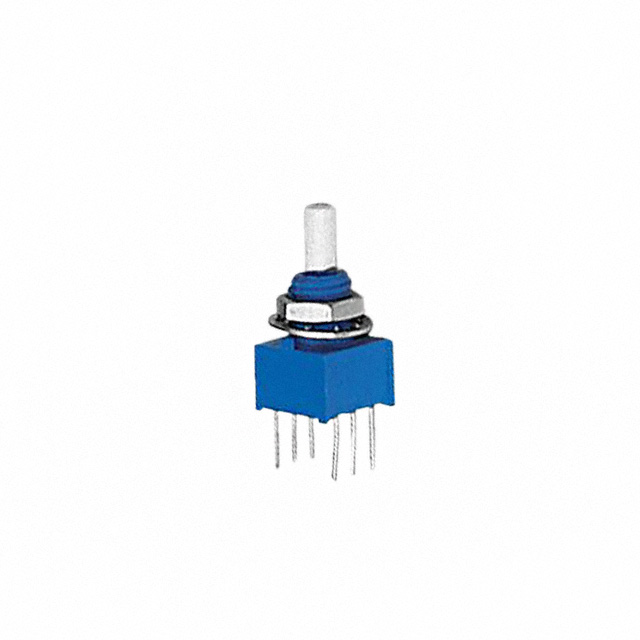

3310H Series
Manufacturer: Bourns Inc.
Beta
⌘K
ROTARY POTENTIOMETER, 100 KOHM, 1 TURNS, LINEAR, 250 MW, ± 20%, 3310 SERIES
| Part | Size - Body [x] | Size - Body [y] | Size - Body [x] | Size - Body [y] | Taper | Actuator Length [x] | Actuator Length [x] | Resistive Material | Built in Switch | Termination Style | Temperature Coefficient | Features | Resistance (Ohms) | Rotation | Power (Watts) | Power (Watts) | Bushing Thread | Actuator Type | Tolerance | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Adjustment Type | Number of Gangs | Mounting Type | Number of Turns | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | Rotary SPST | PC Pins | 1000 ppm/°C | Sealed | 100k | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 1 | Panel Mount | 1 | ||
 Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | None | PC Pins | 1000 ppm/°C | Sealed | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 2 | Panel Mount | 1 | 50 kOhms | ||
 Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | Rotary SPST | PC Pins | 1000 ppm/°C | Sealed | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 1 | Panel Mount | 1 | 1 MΩ | ||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | None | PC Pins | 1000 ppm/°C | Sealed | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 2 | Panel Mount | 1 | 1 MΩ | ||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | None | PC Pins | 1000 ppm/°C | Sealed | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 2 | Panel Mount | 1 | 2 kOhms | ||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | None | PC Pins | 1000 ppm/°C | Sealed | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 1 | Panel Mount | 1 | |||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | Rotary SPST | PC Pins | 1000 ppm/°C | Sealed | 100k | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Flatted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 1 | Panel Mount | 1 | ||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | None | PC Pins | 1000 ppm/°C | Sealed | 10k | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 2 | Panel Mount | 1 | ||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 12.7 mm | 0.5 in | Conductive Plastic | Rotary SPST | PC Pins | 1000 ppm/°C | Sealed | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 1 | Panel Mount | 1 | 5 kOhms | ||
Bourns Inc. | 9.75 mm | 0.375 " | 0.384 " | 9.53 mm | Linear | 19.05 mm | 0.75 in | Conductive Plastic | Rotary SPST | PC Pins | 1000 ppm/°C | Sealed | 10k | 300 ░ | 0.25 W | 0.25 W | 1/4-32 | Slotted | 20 % | 3.18 mm | 0.125 in | Top Adjustment | 1 | Panel Mount | 1 |
