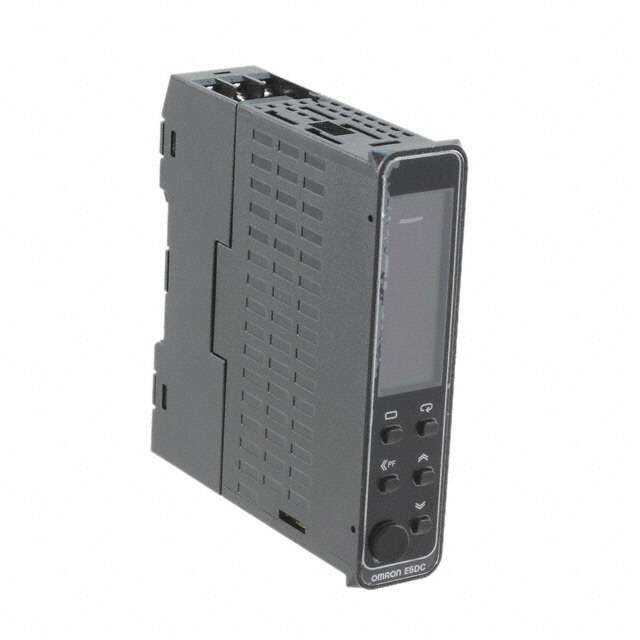

E5DC-RX Series

Manufacturer: Omron Automation and Safety

Catalog

CONTROL TEMP/PROCESS 100-240V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Ingress Protection	Output Type	Features	Mounting Type	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row	Number of Characters Per Row	Control Method	Type	Termination Style	Display Characters - Height	Display Characters - Height	Input Range [Min]	Input Range [Max]	Voltage - Supply	Communications
Omron Automation and Safety E5DC-RX2ASM-017	55 °C	-10 °C	0.265 lb	120.2 g	IP20	Relay (3)	Event Input Heater Fault Detection	DIN Rail	Backlight LCD - Dual Color Characters	240 VAC	100 VAC	4	4	On/Off Proportional (PID)	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	0.334 in	8.5	-200 °C 0 V 0 A	10 V 20 mA 2300 °C
Omron Automation and Safety E5DC-RX2ASM-602
Omron Automation and Safety E5DC-RX2DSM-000	55 °C	-10 °C	0.265 lb	120.2 g	IP20	Relay (3)		DIN Rail	Backlight LCD - Dual Color Characters			4	4	On/Off Proportional (PID)	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	0.334 in	8.5	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	24 VAC
Omron Automation and Safety E5DC-RX2ASM-600
Omron Automation and Safety E5DC-RX0ASM-015	55 °C	-10 °C	0.265 lb	120.2 g	IP20	Relay		DIN Rail	Backlight LCD - Dual Color Characters	240 VAC	100 VAC	4	4	On/Off Proportional (PID)	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	0.334 in	8.5	-200 °C 0 V 0 A	10 V 20 mA 2300 °C		RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5DC-RX2DSM-617	55 °C	-10 °C			IP20	Relay (3)	Event Input Heater Fault Detection Limit Function	DIN Rail	Backlight LCD - Dual Color Characters			4	4	On/Off Proportional (PID)	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	0.334 in	8.5	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	24 VAC
Omron Automation and Safety E5DC-RX2DSM-602
Omron Automation and Safety E5DC-RX2ASM-002	55 °C	-10 °C	0.265 lb	120.2 g	IP20	Relay (3)		DIN Rail	Backlight LCD - Dual Color Characters	240 VAC	100 VAC	4	4	On/Off Proportional (PID)	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Screw Terminal	0.334 in	8.5	-200 °C 0 V 0 A	10 V 20 mA 2300 °C		RS-485 (CompoWay/F Modbus)
