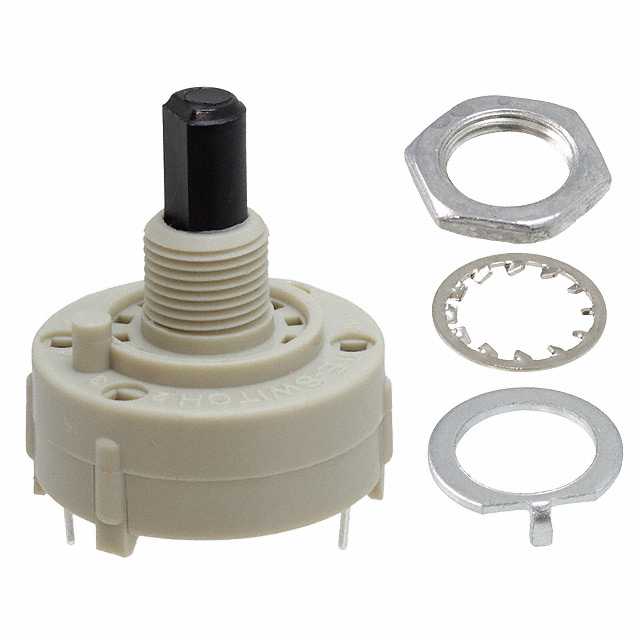

KC18A9 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 8POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Contact Material | Voltage Rating - AC | Current Rating (Amps) | Index Stops | Termination Style | Depth Behind Panel [z] | Actuator Type | Number of Positions | Number of Poles per Deck | Mounting Type | Angle of Throw | Number of Decks [custom] | Contact Timing | Contact Finish | Circuit per Deck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | 9.5 mm | Copper Alloy | 125 V | 350 mA | Fixed | PC Pin | 14.2 mm | Flatted (6.35mm Dia) | 8 | 1 | Panel Mount Through Hole | 30 ° | 1 | Non-Shorting (BBM) | Silver | SP8T |
