EN3C2M Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, CABLE MOUNT PLUG, 2 CONTACTS, SOLDER PIN, BAYONET

Part	Contact Material	Insert Material	Applications	Backshell Material, Plating	Features	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Ingress Protection	Contact Finish - Mating	Voltage Rating	Material Flammability Rating	Connector Type	Color	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Shielding	Primary Material	Fastening Type	Orientation	Termination

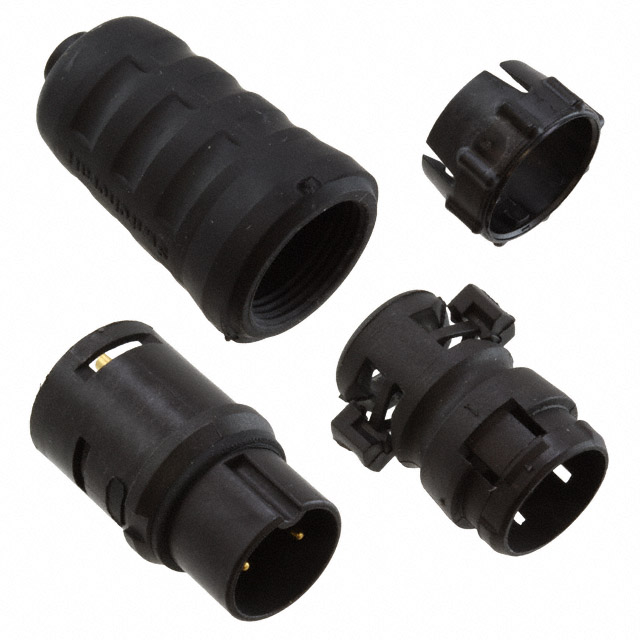

SWITCHCRAFT/CONXALL EN3C2MX	Copper Alloy	Elastomer	General Purpose Instrumentation Marine Medical	Thermoplastic	Backshell Cable Clamp Coupling Nut	7.5 A	Free Hanging (In-Line)	-40 C	65 °C	2	IP66 IP68	Gold	250 VAC	UL94 V-0	Plug Male Pins	Black	4.06 mm	0.265 in	0.16 "	6.73 mm	Unshielded	Plastic	Bayonet Lock	Keyed
SWITCHCRAFT/CONXALL EN3C2M16CX	Copper Alloy	Elastomer	General Purpose Instrumentation Marine Medical	Thermoplastic	Backshell Cable Clamp Coupling Nut	13 A	Free Hanging (In-Line)	-40 C	65 °C	2	IP66 IP68	Gold	250 VAC	UL94 V-0	Plug Male Pins	Black	4.06 mm	0.265 in	0.16 "	6.73 mm	Unshielded	Plastic	Bayonet Lock	Keyed	Crimp

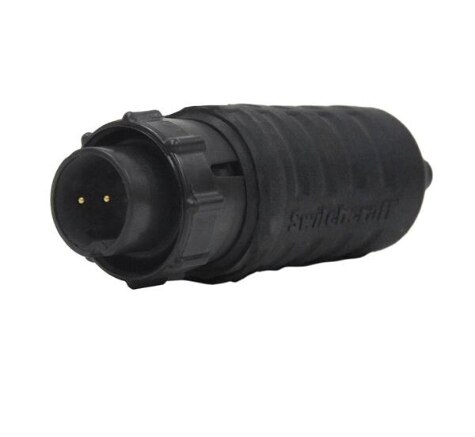

SWITCHCRAFT/CONXALL EN3C2M16LX

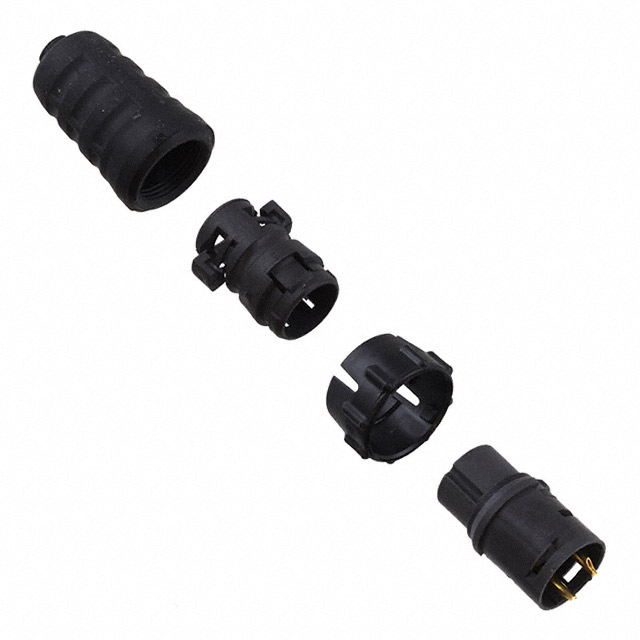

SWITCHCRAFT/CONXALL EN3C2MKX	Copper Alloy	Elastomer	General Purpose Instrumentation Marine Medical	Thermoplastic	Backshell Cable Clamp Coupling Nut	7.5 A	Free Hanging (In-Line)	-40 C	65 °C	2	IP66 IP68	Gold	250 VAC	UL94 V-0	Plug Male Pins	Black	4.06 mm	0.265 in	0.16 "	6.73 mm	Unshielded	Plastic	Bayonet Lock	Keyed
SWITCHCRAFT/CONXALL EN3C2MCKX	Copper Alloy	Elastomer	General Purpose Instrumentation Marine Medical	Thermoplastic	Backshell Cable Clamp Coupling Nut	7.5 A	Free Hanging (In-Line)	-40 C	65 °C	2	IP66 IP68	Gold	250 VAC	UL94 V-0	Plug Male Pins	Black	4.06 mm	0.265 in	0.16 "	6.73 mm	Unshielded	Plastic	Bayonet Lock	Keyed	Crimp
