XAN.M08 Series
Manufacturer: LEMO
Beta
⌘K

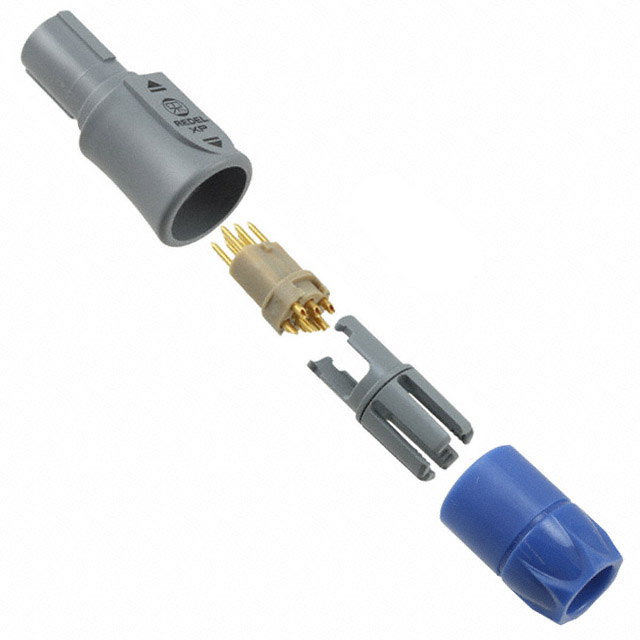

CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Shell Size - Insert | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Type | Shell Material | Insert Material | Primary Material | Ingress Protection | Connector Type | Contact Finish - Mating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Color | Shielding | Current Rating (Amps) | Applications | Features | Fastening Type | Termination | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.154 in | 2.5 mm | 3.9 mm | 0.098 in | Sulfone | Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull | ||
 LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.256 in | 5.3 mm | 6.5 mm | 0.209 in | Sulfone | Blue Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull | ||
LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.295 in | 6.6 mm | 7.5 mm | 0.26 " | Sulfone | Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull | Crimp | |
LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.154 in | 2.5 mm | 3.9 mm | 0.098 in | Sulfone | Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull | ||
LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.256 in | 5.3 mm | 6.5 mm | 0.209 in | Sulfone | Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull | ||
LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.205 in | 0.157 in | Sulfone | Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull | Crimp | 4 mm 5.2 mm | ||
LEMO | M08 | 8 | 170 °C | -50 °C | N (Normal) | Free Hanging (In-Line) | Sulfone | Polyetheretherketone (PEEK) | Plastic | IP50 - Dust Protected | Plug Male Pins | Gold | 0.256 in | 5.3 mm | 6.5 mm | 0.209 in | Sulfone | Gray | Unshielded | 5 A | Industrial Medical Testing Equipment & Measurement | Backshell | Push-Pull |
