RA49C1 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

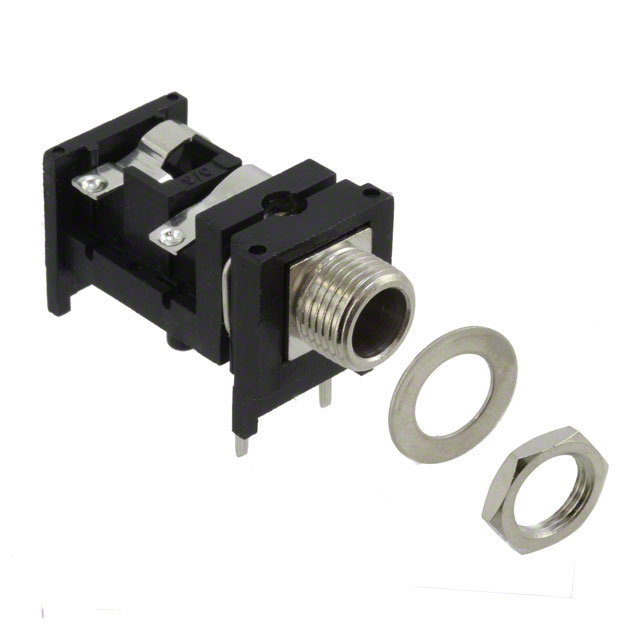

CONN 1/4" PHONE JACK F 3 POS 7.62MM SOLDER RA THRU-HOLE 6 TERMINAL 1 PORT
| Part | Contact Material - Plating | Contact Material | Body Color | Includes | Housing Material | Thread Size | Body Material | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Shielding | Termination | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Connector Type | Internal Switch(s) | Signal Lines | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Silver | Copper Alloy | Black Silver | 1 Nut 1 Washer 3 pcs - 1 Connector | Polyester Thermoplastic | 3/8"-32 | Brass | Female | 6.43 mm | 0.253 in | Unshielded | Solder | Right Angle Through Hole | 5 | 3 | Board Guide | Phone Jack | Two Switches | Stereo (3 Conductor TRS) | |
 SWITCHCRAFT/CONXALL | Silver | Copper Alloy | Black Silver | 1 Nut 1 Washer 3 pcs - 1 Connector | Polyester Thermoplastic | 3/8"-32 | Brass | Female | 6.43 mm | 0.253 in | Unshielded | Solder | Right Angle Through Hole | 3 | 3 | Board Guide | Phone Jack | Stereo (3 Conductor TRS) |
