MS3106A10 Series

Catalog

MIL-5015 MS/AC THREADED PLUG

Part	Shell Finish	Termination	Shielding	Insert Material	Primary Material	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Applications	Grade	Connector Type	Contact Material	Ingress Protection	Current Rating	Mounting Type	Shell Size - Insert	Fastening Type	Orientation	Number of Positions	Contact Finish - Mating	Qualification	Features	Backshell Material	Plating
Amphenol Aerospace Operations MS3106A10SL-4P	Cadmium Olive Drab Chromate	Solder Cup	Unshielded	Neoprene	Metal	Aluminum Alloy	125 °C	-55 °C	Olive Drab	Marine Military	Military	Male Pins Plug	Copper Alloy	Environment Resistant	13 A	Free Hanging (In-Line)	10SL-4	Threaded	N (Normal)	2	Silver	MIL-DTL-5015
Amphenol Aerospace Operations MS3106A10SL-4P-RES
Amphenol Aerospace Operations MS3106A10S-2S	Cadmium Olive Drab Chromate	Solder Cup	Unshielded	Neoprene	Metal	Aluminum Alloy	125 °C	-55 °C	Olive Drab	Marine Military	Military	Female Sockets Plug	Copper Alloy	Environment Resistant	13 A	Free Hanging (In-Line)	10S-2	Threaded	N (Normal)	1	Silver	MIL-DTL-5015	Backshell Coupling Nut

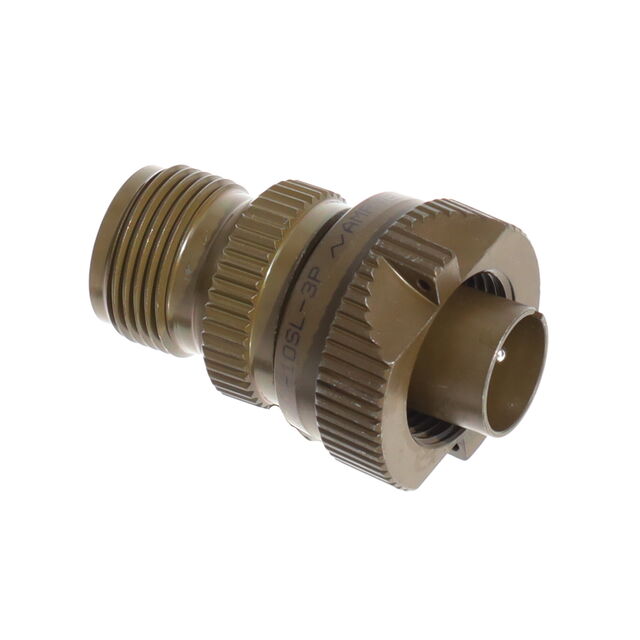

Amphenol Aerospace Operations MS3106A10SL-3P	Cadmium Olive Drab Chromate	Solder Cup	Unshielded	Neoprene	Metal	Aluminum Alloy	125 °C	-55 °C	Olive Drab	Marine Military		Male Pins Plug	Copper Alloy			Free Hanging (In-Line)	10SL-3	Threaded	N (Normal)	3	Silver	MIL-DTL-5015	Backshell Coupling Nut	Aluminum Alloy	Olive Drab Chromate over Cadmium
