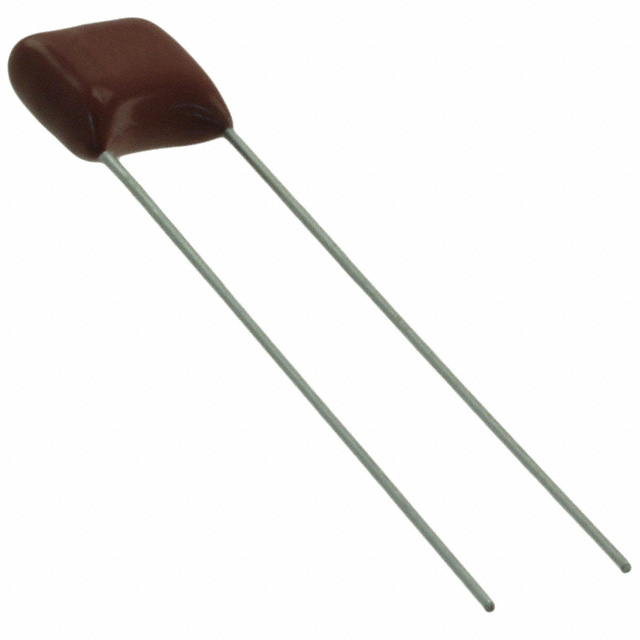

ECQ-E2103 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 10000PF 5% 250VDC RAD

Part	Mounting Type	Dielectric Material	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Voltage Rating - DC	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Electronic Components ECQ-E2103JF3	Through Hole	Polyester Metallized	General Purpose	12.4 mm	0.488 in	5 %	250 V	0.197 "	5 mm	-40 C	105 ░C	10000 pF	0.169 "	10.3 mm	0.406 in	4.3 mm	Radial	PC Pins

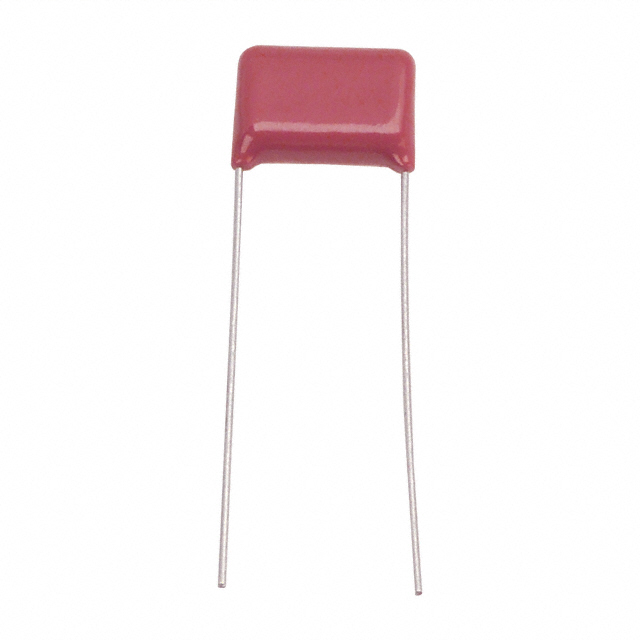

Panasonic Electronic Components ECQ-E2103KS	Through Hole	Polyester Metallized	General Purpose			10 %	250 V	0.394 in	10 mm	-40 C	85 °C	10000 pF	0.197 "	12.5 mm	0.492 "	5 mm	Radial	PC Pins	9 mm	0.354 in
Panasonic Electronic Components ECQ-E2103JFW	Through Hole	Polyester Metallized	General Purpose	12.4 mm	0.488 in	5 %	250 V	0.295 in	7.5 mm	-40 C	105 ░C	10000 pF	0.169 "	10.3 mm	0.406 in	4.3 mm	Radial	PC Pins
Panasonic Electronic Components ECQ-E2103JBB	Through Hole	Polyester Metallized	General Purpose			5 %	250 V			-40 C	105 ░C	10000 pF					Radial	PC Pins

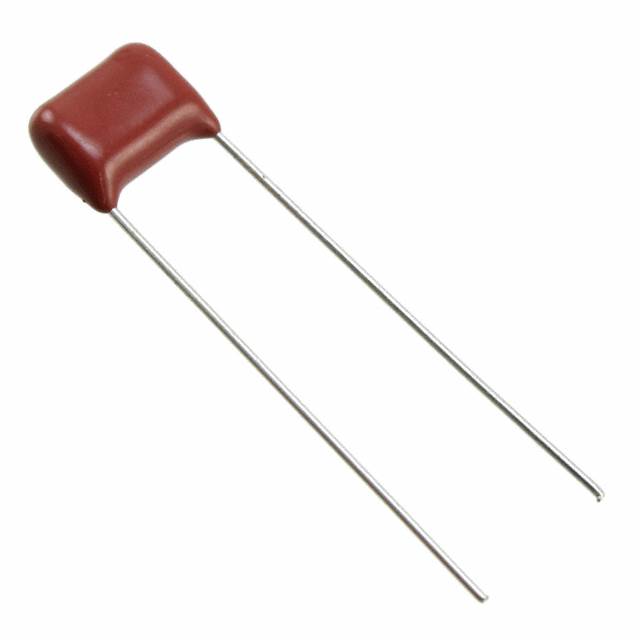

Panasonic Electronic Components ECQ-E2103JF	Through Hole	Polyester Metallized	General Purpose	8.4 mm	0.331 in	5 %	250 V	0.295 in	7.5 mm	-40 C	105 ░C	10000 pF	0.169 "	10.3 mm	0.406 in	4.3 mm	Radial	PC Pins
Panasonic Electronic Components ECQ-E2103KF	Through Hole	Polyester Metallized	General Purpose	8.4 mm	0.331 in	10 %	250 V	0.295 in	7.5 mm	-40 C	105 ░C	10000 pF	0.169 "	10.3 mm	0.406 in	4.3 mm	Radial	PC Pins
Panasonic Electronic Components ECQ-E2103KB3	Through Hole	Polyester Metallized	General Purpose			10 %	250 V	0.197 "	5 mm	-40 C	105 ░C	10000 pF	0.165 in	7.9 mm	0.311 in	4.2 mm	Radial	PC Pins		0.476 "	12.1 mm
Panasonic Electronic Components ECQ-E2103KB	Through Hole	Polyester Metallized	General Purpose			10 %	250 V	0.197 "	5 mm	-40 C	105 ░C	10000 pF	0.165 in	7.9 mm	0.311 in	4.2 mm	Radial	PC Pins	8.1 mm	0.319 in
