152250 Series

Catalog

CONN RCPT 50POS IDC 28AWG GOLD

Part	Mounting Type	Contact Finish	Features	Row Spacing	Row Spacing	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Number of Positions	Cable Termination	Wire Gauge	Connector Type	Number of Rows [custom]	Contact Type
3M Electronic Specialty 152250-0100-GG	Free Hanging (In-Line)	Gold	Feed Through	2 mm	0.079 in	Ribbon Cable	0.38 µm	15 µin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket
3M Electronic Specialty 152250-0013-GG	Free Hanging (In-Line)	Gold	Closed End Polarizing Key Strain Relief	2 mm	0.079 in	Ribbon Cable	0.38 µm	15 µin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket
3M Electronic Specialty 152250-0113-GB	Free Hanging (In-Line)	Gold	Feed Through Polarizing Key Strain Relief	2 mm	0.079 in	Ribbon Cable	0.76 Ám	30 Áin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket
3M Electronic Specialty 152250-0110-GB	Free Hanging (In-Line)	Gold	Feed Through Polarizing Key	2 mm	0.079 in	Ribbon Cable	0.76 Ám	30 Áin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket
3M Electronic Specialty 152250-0110-GG	Free Hanging (In-Line)	Gold	Feed Through Polarizing Key	2 mm	0.079 in	Ribbon Cable	0.38 µm	15 µin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket
3M Electronic Specialty 152250-0100-GB	Free Hanging (In-Line)	Gold	Feed Through	2 mm	0.079 in	Ribbon Cable	0.76 Ám	30 Áin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket

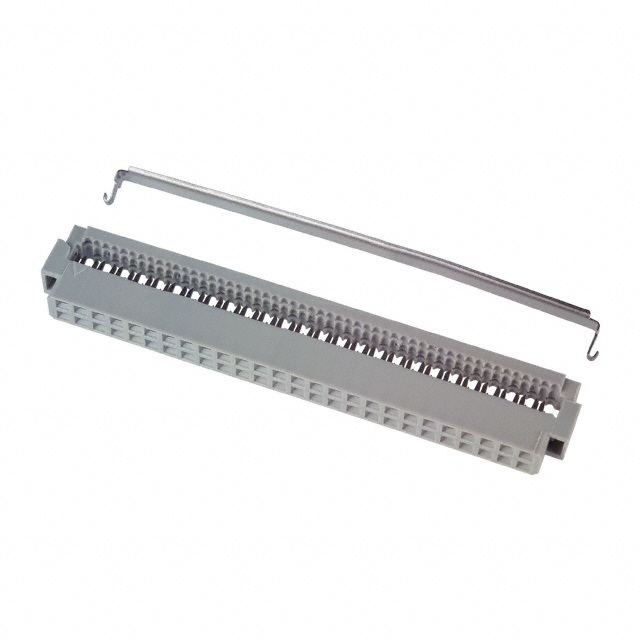

3M Electronic Specialty 152250-0103-GB	Free Hanging (In-Line)	Gold	Feed Through Strain Relief	2 mm	0.079 in	Ribbon Cable	0.76 Ám	30 Áin	0.079 in	2 mm	Gray	50	IDC	28 AWG	Receptacle	2	Female Socket
