2364427 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CARD EDGE CONNECTOR, 98 CONTACT(S), STRAIGHT, SURFACE MOUNT TERMINAL, BLACK INSULATOR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Material	Contact Finish	Number of Positions	Mounting Type	Card Thickness	Card Thickness	Features	Card Type	Material - Insulation [custom]	Number of Rows	Read Out	Color	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch [x]	Pitch [x]	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Material - Insulation

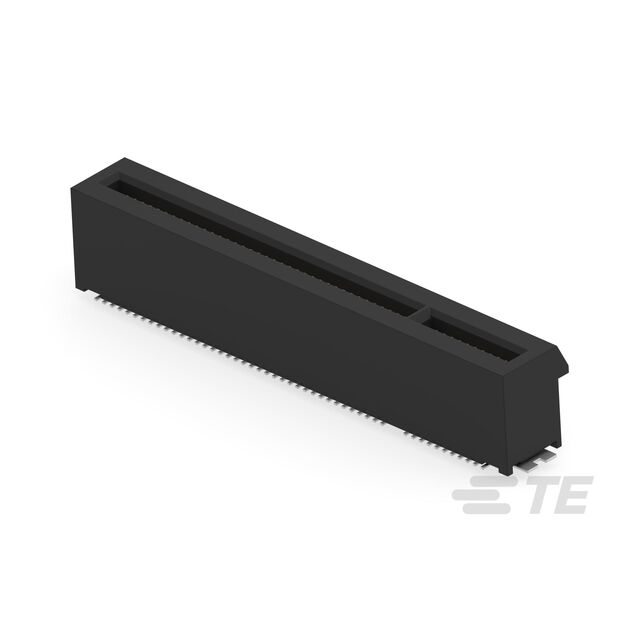

TE Connectivity Raychem Cable Protection 5-2364427-3	85 °C	-40 °C	Cantilever	Copper Alloy	Gold	98	Surface Mount	0.062 in	1.57 mm	Board Guide Locking Ramp	PCI Express™	Plastic	2	Dual	Black	Female	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	2	38	11

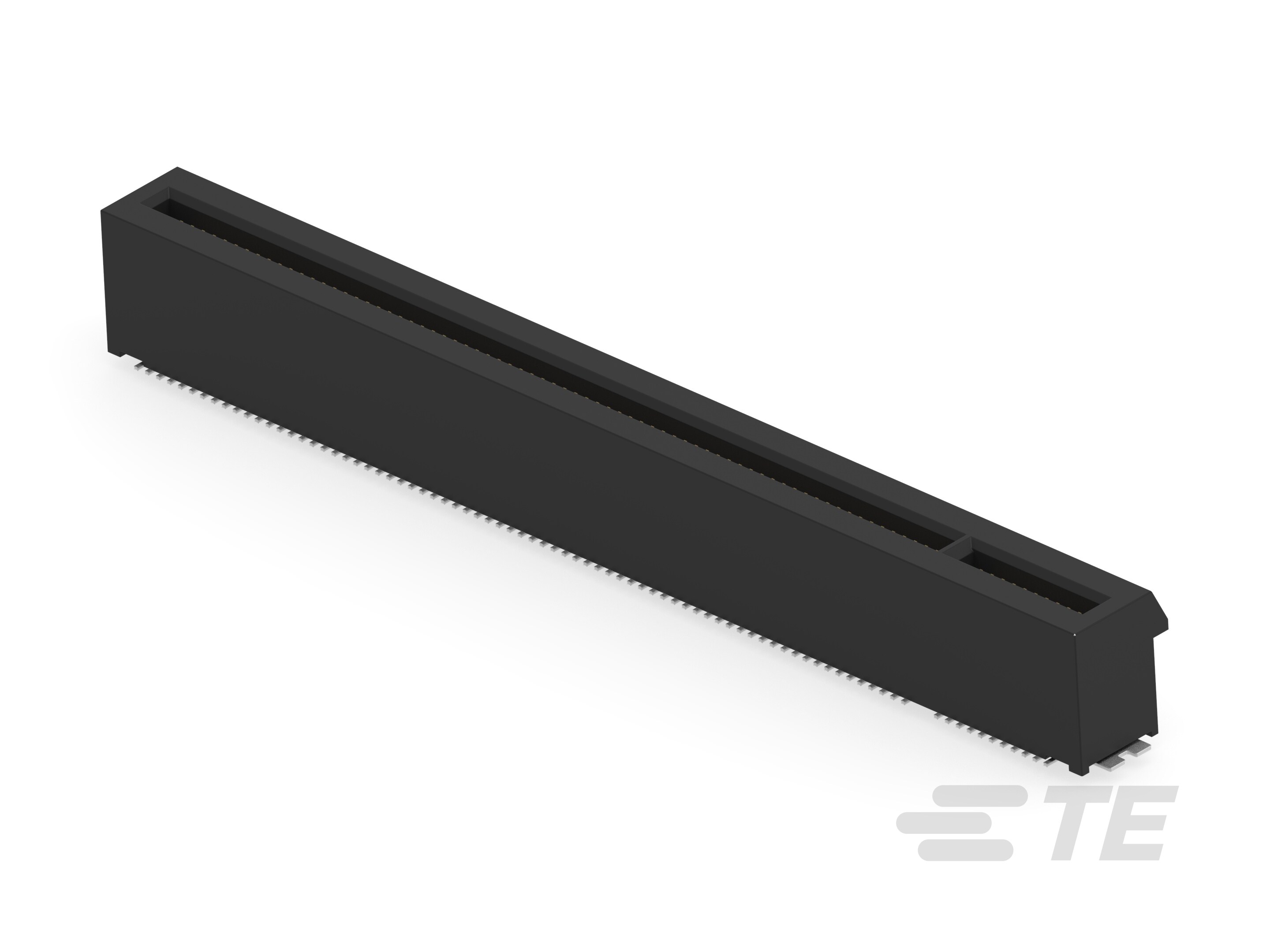

TE Connectivity Raychem Cable Protection 7-2364427-4	85 °C	-40 °C	Cantilever	Copper Alloy	Gold	164	Surface Mount	0.062 in	1.57 mm	Board Guide GEN5 Locking Ramp Pick and Place Cap Solder Retention	PCI Express™		2	Dual	Black	Female	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	2			71	11	Thermoplastic

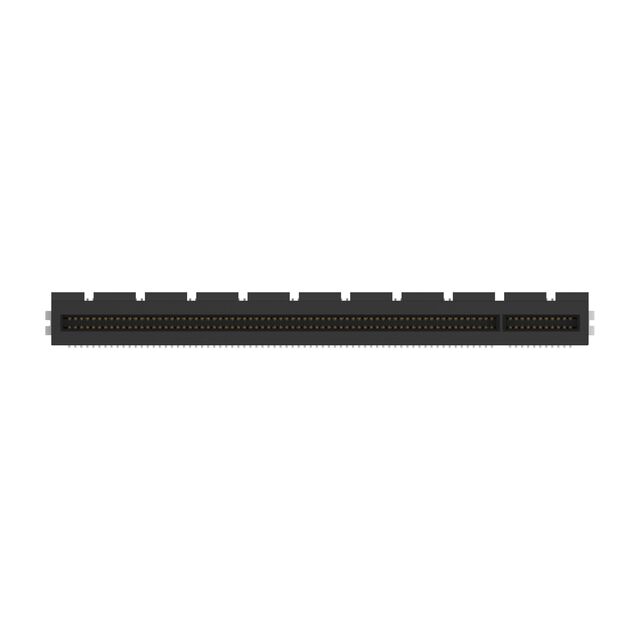

TE Connectivity Raychem Cable Protection 5-2364427-4	85 °C	-40 °C	Cantilever	Copper Alloy	Gold	164	Surface Mount	0.062 in	1.57 mm	Board Guide Locking Ramp	PCI Express™	Plastic	2	Dual	Black	Female	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	2			71	11

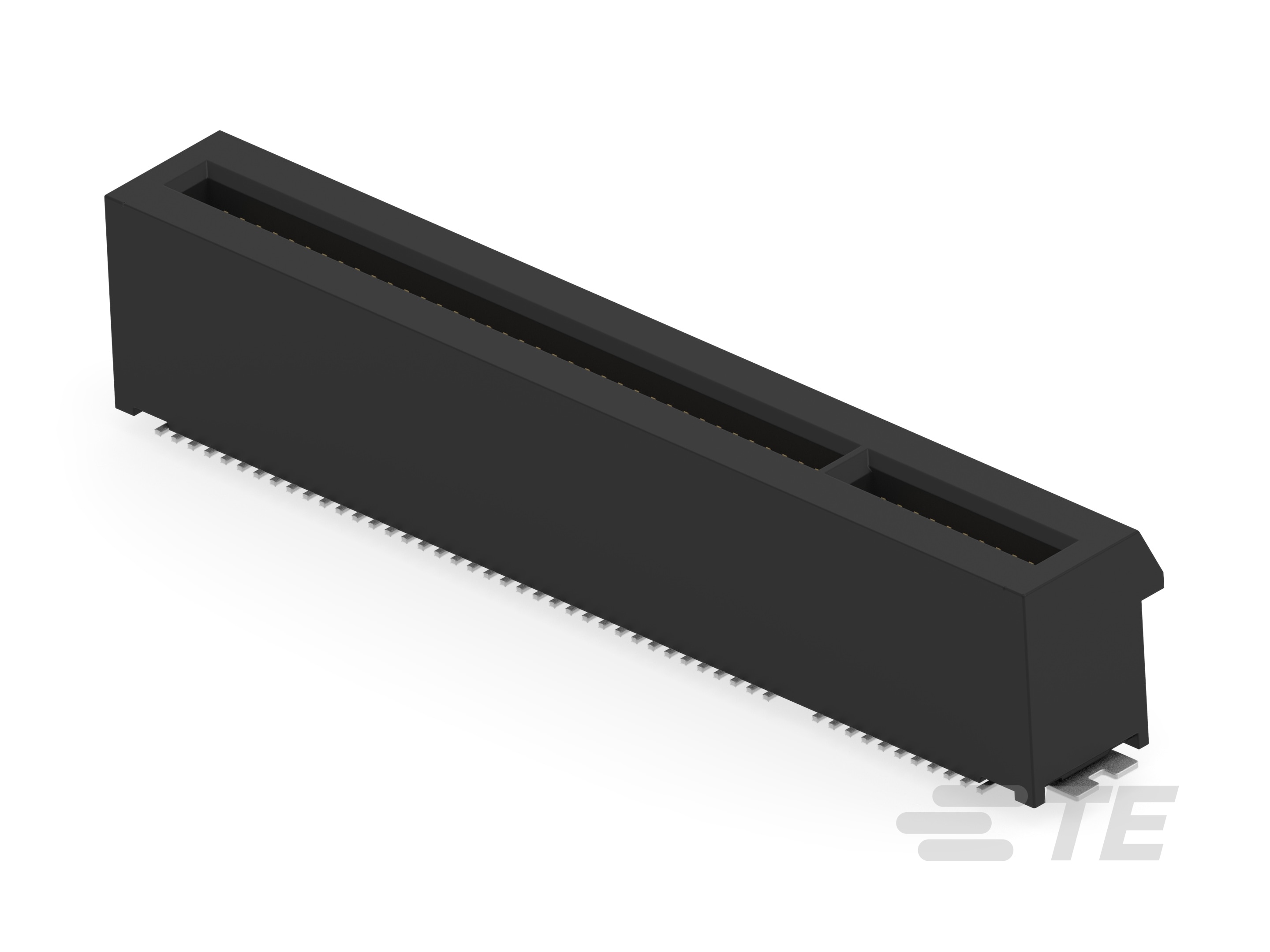

TE Connectivity Raychem Cable Protection 1-2364427-3	85 °C	-40 °C	Cantilever	Copper Alloy	Gold	98	Surface Mount	0.062 in	1.57 mm	Board Guide GEN5 Locking Ramp Pick and Place Cap Solder Retention	PCI Express™		2	Dual	Black	Female	0.38 µm	15 µin	Solder	0.039 in	1 mm	2	38	11			Thermoplastic
TE Connectivity Raychem Cable Protection 4-2364427-7	85 °C	-40 °C	Cantilever	Copper Alloy	Gold	98	Surface Mount	0.062 in	1.57 mm	Board Guide GEN5 Locking Ramp Pick and Place Cap Solder Retention	PCI Express™		2	Dual	Black	Female	0.38 µm	15 µin	Solder	0.039 in	1 mm	2	38	11			Thermoplastic
TE Connectivity Raychem Cable Protection 5-2364427-7	85 °C	-40 °C	Cantilever	Copper Alloy	Gold	98	Surface Mount	0.062 in	1.57 mm	Board Guide GEN5 Locking Ramp Pick and Place Cap Solder Retention	PCI Express™		2	Dual	Black	Female	0.76 Ám	30 Áin	Solder	0.039 in	1 mm	2	38	11			Thermoplastic
