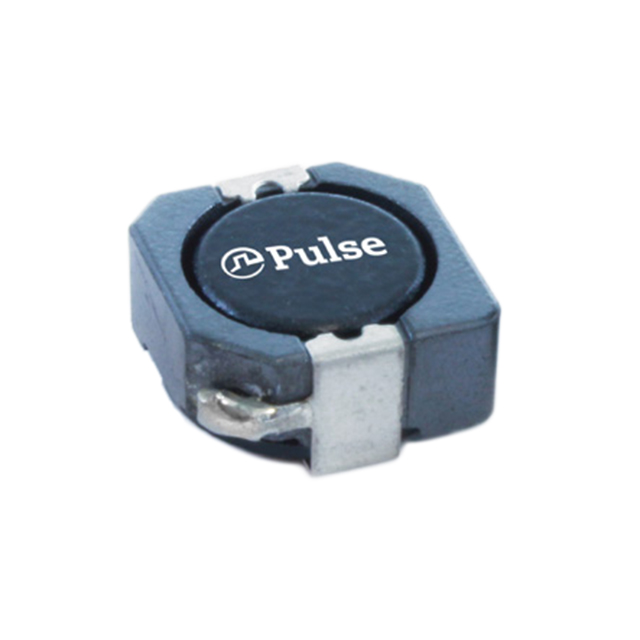

PA4321 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD PA4321 10X10.2MM 3.3UH 6.32A 10MOHMS
| Part | DC Resistance (DCR) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Mounting Type | Inductance Frequency - Test | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Saturation (Isat) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Current Rating (Amps) | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 10 mOhm | Wirewound | 125 °C | -40 C | Shielded | Surface Mount | 100 kHz | 20 % | 0.201 in | 5.1 mm | 4.62 A | 10 mm | 0.394 in | 0.402 in | 10.2 mm | Nonstandard Corner Terminals | 6.32 A | 3.3 µH |
Pulse Electronics | 748 mOhm | Wirewound | 125 °C | -40 C | Shielded | Surface Mount | 100 kHz | 20 % | 0.201 in | 5.1 mm | 570 mA | 10 mm | 0.394 in | 0.402 in | 10.2 mm | Nonstandard Corner Terminals | 690 mA | 330 µH |
