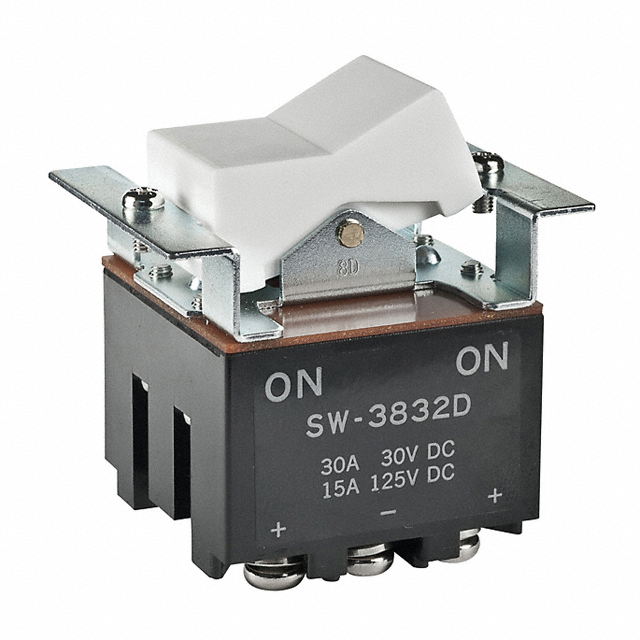

SW3832 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER 3PDT 30A 125V
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Color - Actuator/Cap | Current Rating (Amps) | Actuator Type | Mounting Type | Switch Function | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Approval Agency | Circuit | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | 30 A | Concave | Flange Panel Mount | On-On | Screw Terminal | 70 °C | -10 °C | 125 V | CSA UL | 3PDT | No Marking |
NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | 30 A | Concave | Flange Panel Mount | On-On | Screw Terminal | 70 °C | -10 °C | 125 V | CSA UL | 3PDT | No Marking |
 NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | Concave | Flange Panel Mount | On-On | Screw Terminal | 70 °C | -10 °C | 125 V | CSA UL | 3PDT | No Marking | |
NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | 30 A | Concave | Flange Panel Mount | On-On | Screw Terminal | 70 °C | -10 °C | 125 V | CSA UL | 3PDT | No Marking |
 NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | Concave | Flange Panel Mount | On-On | Screw Terminal | 70 °C | -10 °C | CSA UL | 3PDT | No Marking |
