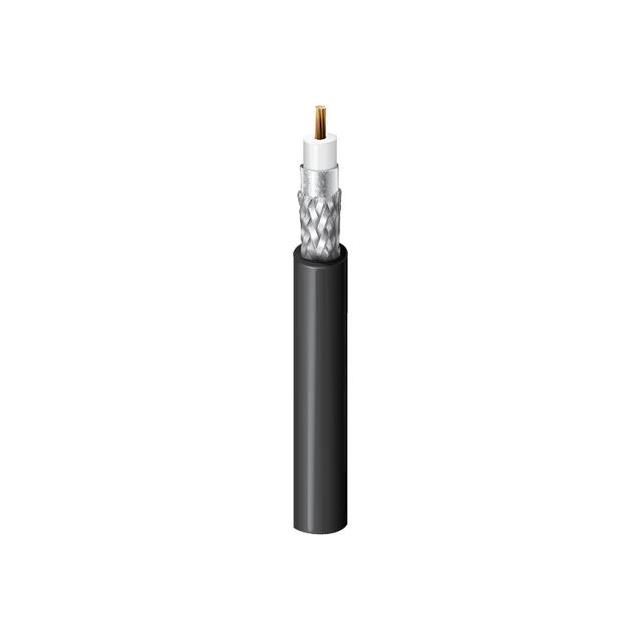

9913F7 Series
Manufacturer: Belden Inc.
Beta
⌘K
#10 FHDPE SH PVC
| Part | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Shield Coverage | Usage | Conductor Strand | Impedance | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket Color | Jacket (Insulation) Material | Wire Gauge | Cable Group | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 80 °C | -40 C | 85 | 7.21 mm | 0.284 in | Copper Bare | 90 % 100 % | RF Signal | 7 Strands 18 AWG | 52 Ohms | 100 ' | 30.48 m | 10.29 mm | 0.405 " | Coaxial | Black | Poly-Vinyl Chloride (PVC) | 10 AWG | RG-8 | Braid Foil |
