A222T10V Series
Manufacturer: Nicomatic
Beta
⌘K

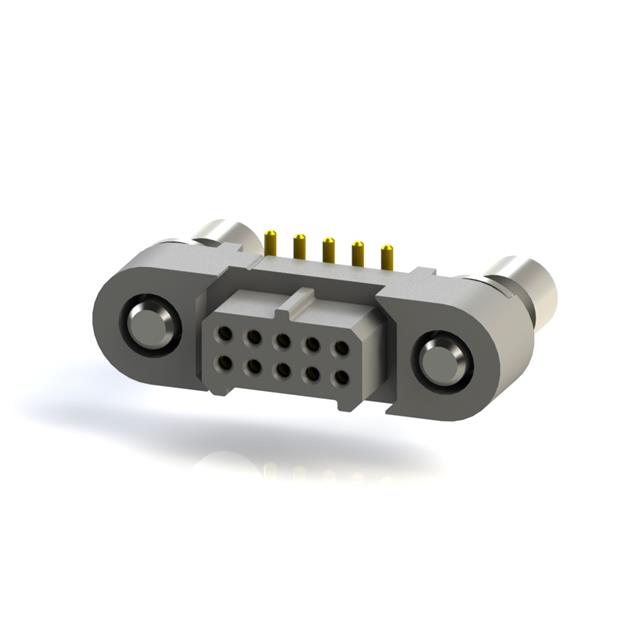

FEM. 10POS STRAIGHT SMT 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Material | Insulation Material | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Positions | Connector Type | Voltage Rating | Contact Finish - Post | Number of Rows [custom] | Features | Termination | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Fastening Type | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | Circular | Copper Alloy | Liquid Crystal Polymer (LCP) | 4 mm | 0.157 in | UL94 V-0 | 1 mm | 0.039 in | All | 10 | Receptacle | 600 VAC | Gold | 2 | Jackscrews Mating Flange Mounting Flange Polarizing Key | Solder | 0.039 in | 1 mm | Gold | 5.9 µin | 0.15 µm | Female Socket | -65 ░C | 200 °C | Black | Push-Pull | 2.5 A | Surface Mount |
