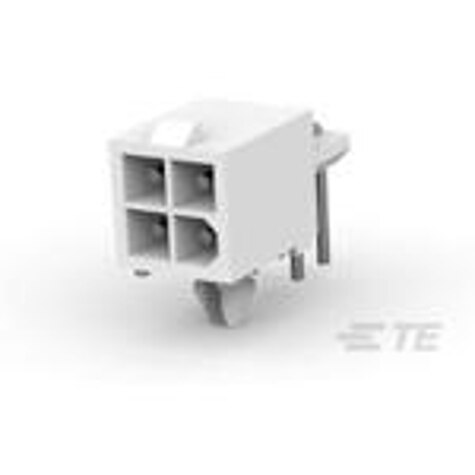

1586610 Series
Pin & Socket Connectors HDR 4 POS R/A MINI
Manufacturer: TE Connectivity AMP Connectors
Catalog
Pin & Socket Connectors HDR 4 POS R/A MINI
Beta
⌘K
Pin & Socket Connectors HDR 4 POS R/A MINI
Pin & Socket Connectors HDR 4 POS R/A MINI
Pin & Socket Connectors HDR 4 POS R/A MINI
| Part | Number of Rows | Contact Finish Thickness - Post | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Type | Insulation Color | Contact Finish - Mating | Number of Rows [custom] | Fastening Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Number of Positions | Features | Contact Material | Contact Shape | Contact Finish - Post | Termination | Style | Shrouding | Connector Type | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | 3.81 Ám | Nylon Polyamide (PA) | 0.163 in | 4.14 mm | 3.68 mm | 0.145 in | 0.76 Ám | 30 Áin | All | Male Pin | White | Gold | 2 | Locking Ramp | 4.14 mm | 0.163 in | 9.8 mm | 0.386 in | 4 | Board Lock | Brass | Circular | Tin | Solder | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | Right Angle Through Hole |
 TE Connectivity AMP Connectors | 3.81 Ám | Nylon Polyamide (PA) | 0.163 in | 4.14 mm | 3.68 mm | 0.145 in | 3.81 Ám | 150 Áin | All | Male Pin | White | 2 | Locking Ramp | 4.14 mm | 0.163 in | 9.8 mm | 0.386 in | 4 | Board Lock | Brass | Circular | Tin | Solder | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | Right Angle Through Hole |
