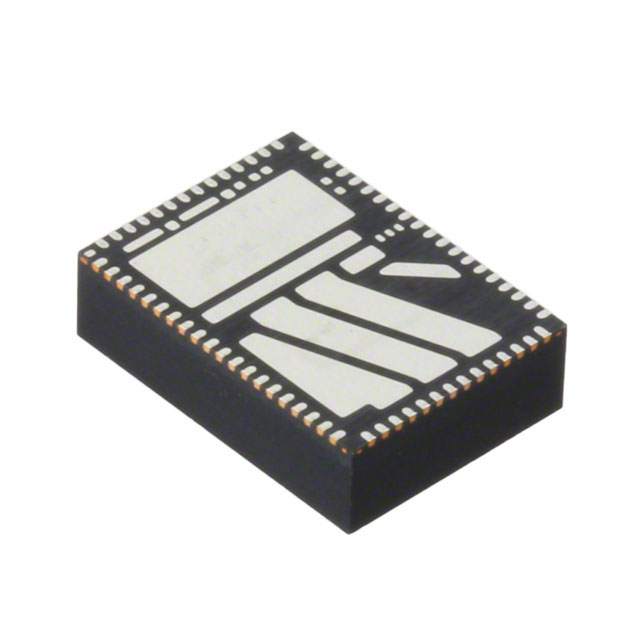

EV1380 Series
Manufacturer: Altera
Beta
⌘K
DC DC CONVERTER 0.58-0.825V
| Part | Control Features | Current - Output (Max) [Max] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Supplier Device Package | Efficiency | Applications | Type | Package / Case | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altera | Active High Enable | 8 A | OCP OTP Remote On/Off SCP UVLO | 85 °C | -40 C | 1.16 V | Surface Mount | 0.58 V | 0.825 V | 0.43 " | 8 mm | 3 mm | 11 mm | 0.12 " | 0.32 " | 68-QFN (11x8) | 94 % | ITE (Commercial) | Non-Isolated PoL Module | 68-BFQFN Exposed Pad Module | 1 |
Altera | Active High Enable | 8 A | OCP OTP Remote On/Off SCP UVLO | 85 °C | -40 C | 1.16 V | Surface Mount | 0.58 V | 0.825 V | 0.43 " | 8 mm | 3 mm | 11 mm | 0.12 " | 0.32 " | 68-QFN (11x8) | 94 % | ITE (Commercial) | Non-Isolated PoL Module | 68-BFQFN Exposed Pad Module | 1 |
