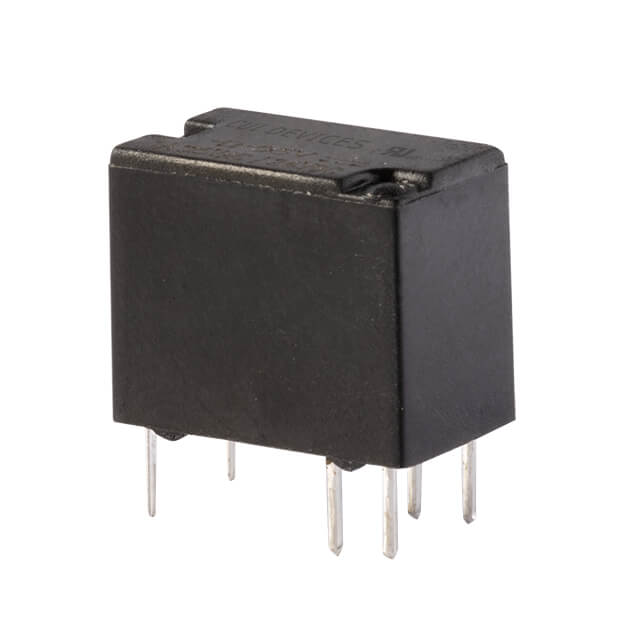

SR3-24V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPDT 1A 24V
| Part | Must Release Voltage | Termination Style | Coil Type | Contact Form | Operate Time | Contact Rating (Current) | Coil Voltage | Must Operate Voltage | Load - Max Switching | Contact Material | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Mounting Type | Switching Voltage [Max] | Relay Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 2.4 VDC | PC Pin | Non Latching | SPDT (1 Form C) | 5 ms | 1 A | 24 VDC | 18 VDC | 60 W 125 VA | Gold (Au) Silver (Ag) | 5 ms | 70 °C | -40 C | 7.3 mA | Through Hole | 60 VDC 125 VAC | General Purpose | |
Same Sky (Formerly CUI Devices) | 2.4 VDC | PC Pin | Non Latching | SPDT (1 Form C) | 5 ms | 1 A | 24 VDC | 18 VDC | 60 W 125 VA | Gold (Au) Silver (Ag) | 5 ms | 70 °C | -40 C | 7.3 mA | Through Hole | 60 VDC 125 VAC | General Purpose | 3.291 kOhms |
