NTE4012 Series

Catalog

IC GATE NAND 2CH 4-INP 14SOIC

Part	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Quiescent (Max) [Max]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Max Propagation Delay @ V, Max CL	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Package / Case	Logic Type	Number of Inputs [custom]	Number of Circuits

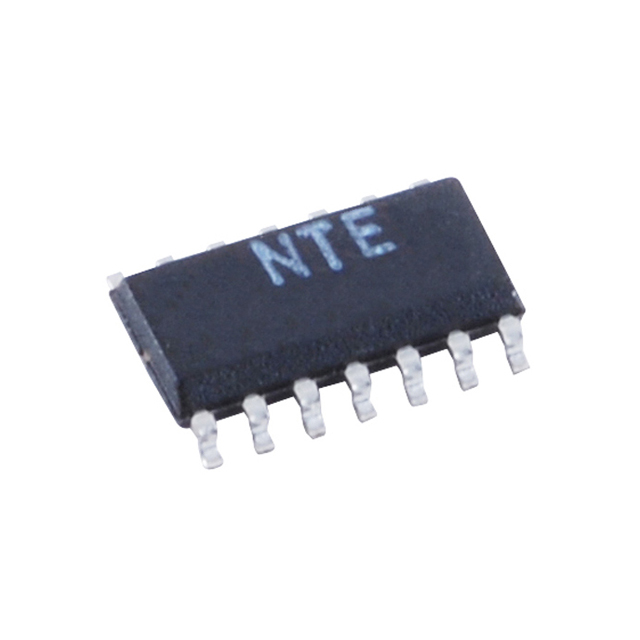

NTE Electronics, Inc NTE4012BT	11 V	3.5 V	Surface Mount	3 V	18 V	1 çA	4 V	1.5 V	100 ns	-55 C	125 °C	8.8 mA	8.8 mA	0.154 in 3.9 mm	14-SOIC	NAND Gate	4	2
