SD1206 Series

Catalog

DIODE SCHOTTKY 40V 2A 1206

Part	Mounting Type	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]
KYOCERA AVX SD1206T040S2R0	Surface Mount	2 A	-55 °C	125 °C	200 mA 500 ns	40 V	Schottky	1206 (3216 Metric)	500 mV	3216 Metric	1206	200 µA
KYOCERA AVX SD1206T040S3R0	Surface Mount	3 A	-55 °C	125 °C	200 mA 500 ns	40 V	Schottky	1206 (3216 Metric)	550 mV		1206	200 µA

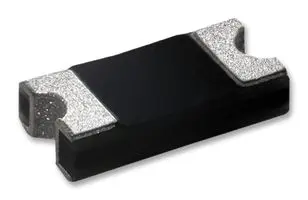

KYOCERA AVX SD1206S040S1R0	Surface Mount	1 A	-55 °C	125 °C	200 mA 500 ns	40 V	Schottky	1206 (3216 Metric)		3216 Metric	1206	200 µA	500 mV
