FS3L400R10 Series
Manufacturer: INFINEON
Beta
⌘K

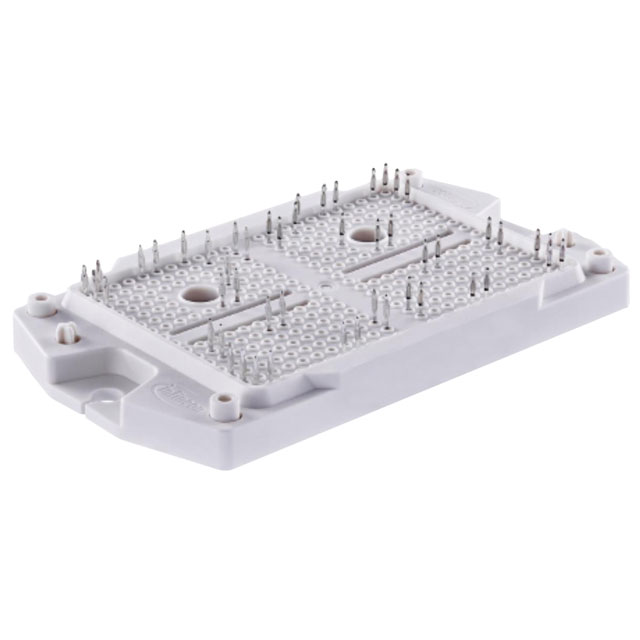

THE FS3L400R10W3S7F_B11 IS A 3-LEVEL EASYPACK™ MODULE - EASY3B MODULE WITH TRENCHSTOP™ IGBT7 AND COOLSIC™ SCHOTTKY DIODE UP TO 950 V AND 400 A
| Part | Input Capacitance (Cies) @ Vce | Voltage - Collector Emitter Breakdown (Max) [Max] | Supplier Device Package | Current - Collector Cutoff (Max) [Max] | Current - Collector (Ic) (Max) [Max] | IGBT Type | Input | Mounting Type | Configuration | NTC Thermistor | Operating Temperature [Max] | Operating Temperature [Min] | Vce(on) (Max) @ Vge, Ic | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 12.6 nF | 950 V | AG-EASY3B | 26 µA | 120 A | Trench Field Stop | Standard | Chassis Mount | Three Level Inverter | 175 °C | -40 °C | 1.48 V | Module |
