XBP9X Series

Catalog

RF TXRX MOD ISM<1GHZSMD

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Current - Receiving	Modulation	Antenna Type	RF Family/Standard	Power - Output	Data Rate	Package / Case	Mounting Type	Sensitivity	Current - Transmitting [Min] [x]	Current - Transmitting [Max] [x]	Utilized IC / Part	Serial Interfaces	Power - Output [x]	Current - Transmitting
Digi International XBP9X-DMRS-021	3.6 V	2.4 V 2.6 V	85 °C	-40 C	902 MHz	928 MHz	40 mA	FHSS GFSK	Antenna Not Included	General ISM < 1GHz	30 dBm	250 KBd	Module	Surface Mount	-113 dBm	330 mA	900 mA	ADF7023	UART
Digi International XBP9X-DMRS-011	3.6 V	2.4 V 2.6 V	85 °C	-40 C	902 MHz	928 MHz	40 mA	FHSS GFSK	Antenna Not Included U.FL	General ISM < 1GHz	30 dBm	250 KBd	Module	Surface Mount	-113 dBm	330 mA	900 mA	ADF7023	UART
Digi International XBP9XT-DPRS-001			85 °C	-40 C	902 MHz	928 MHz	40 mA	FSK	Antenna Not Included	General ISM < 1GHz		125 kbps	Module	Surface Mount	-110 dBm				UART	13 dBm	900 mA
Digi International XBP9XT-DMRS-001			85 °C	-40 C	902 MHz	928 MHz	40 mA	FSK	Antenna Not Included	General ISM < 1GHz		125 kbps	Module	Surface Mount	-110 dBm				UART	13 dBm	900 mA

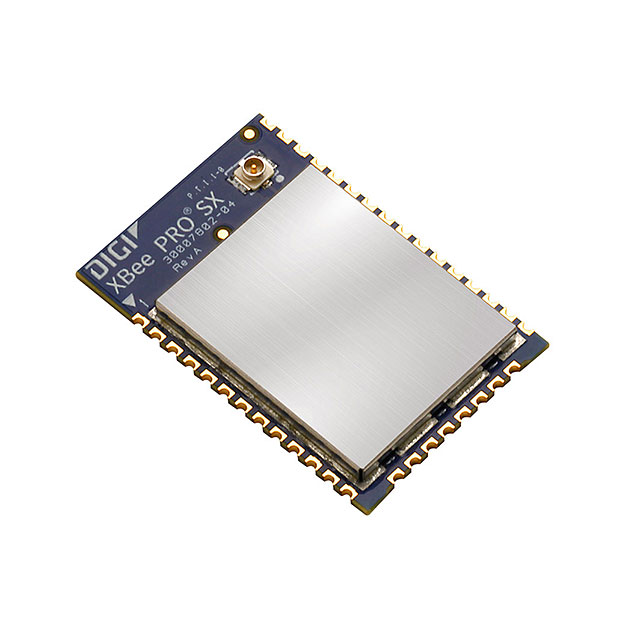

Digi International XBP9XT-DMUS-001			85 °C	-40 C	902 MHz	928 MHz	40 mA	FSK	Antenna Not Included U.FL	General ISM < 1GHz		125 kbps	Module	Surface Mount	-110 dBm				UART	13 dBm	900 mA
Digi International XBP9X-DMUS-001	3.6 V	2.4 V 2.6 V	85 °C	-40 C	902 MHz	928 MHz	40 mA	GFSK	Antenna Not Included U.FL	General ISM < 1GHz	30 dBm	250 KBd	Module	Surface Mount	-113 dBm	330 mA	900 mA	ADF7023			55 mA
