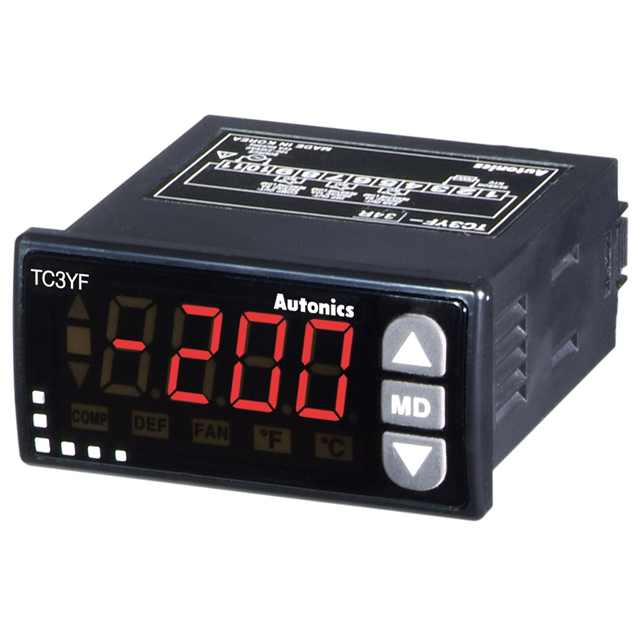

TC3YF Series

Manufacturer: Autonics

Catalog

TEMP CONTROL RELAY NTC 100-240V

Part	Ingress Protection	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Range [Max]	Input Range [Min]	Display Characters - Height	Display Characters - Height	Display Type	Output Type	Control Method	Number of Characters Per Row
Autonics TC3YF-34R-N	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (Thermistor NTC)	240 VAC	100 VAC	99.9 °C 212 °F	-40 °F	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-11R-R	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (RTD)	24 V	12 VDC	99.9 °C 212 °F	-148 °F -99.9 °C	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-24R-R	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (RTD)	240 VAC	100 VAC	99.9 °C 212 °F	-148 °F -99.9 °C	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-24R-N	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (Thermistor NTC)	240 VAC	100 VAC	99.9 °C 212 °F	-40 °F	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-14R-R	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (RTD)	240 VAC	100 VAC	99.9 °C 212 °F	-148 °F -99.9 °C	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-21R-N	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (Thermistor NTC)	24 V	12 VDC	99.9 °C 212 °F	-40 °F	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-14R-N	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (Thermistor NTC)	240 VAC	100 VAC	99.9 °C 212 °F	-40 °F	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
Autonics TC3YF-34R-R	IP65 - Dust Tight Water Resistant	Panel Mount	68 mm	31.5 mm	Screw Terminal	Temperature Controller (RTD)	240 VAC	100 VAC	99.9 °C 212 °F	-148 °F -99.9 °C	15 mm	0.59 in	LED Red Characters	Relay	On/Off	3
