S7B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

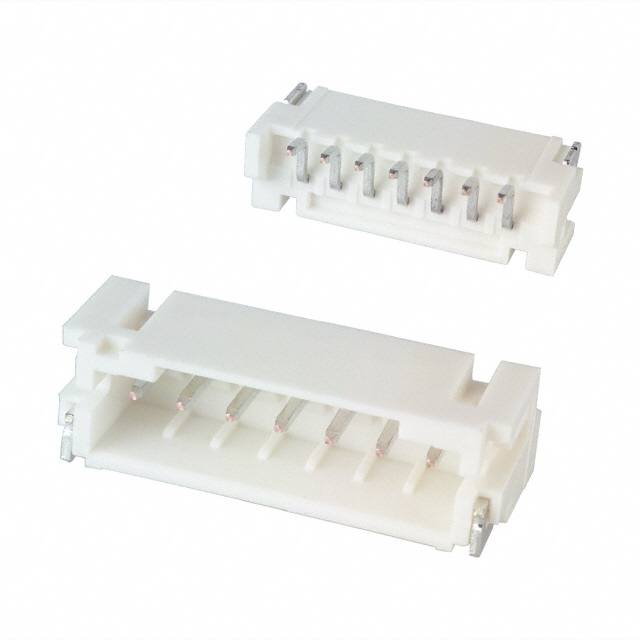

CONN HEADER SMD R/A 7POS 2MM
| Part | Contact Shape | Contact Material | Features | Fastening Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Insulation Color | Material Flammability Rating | Number of Rows | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Type | Voltage Rating | Contact Finish - Post | Number of Positions | Insulation Material | Style | Termination | Number of Positions Loaded | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Copper Alloy | Solder Retention | Detent Lock | 2 A | 0.079 " | 2 mm | Natural | UL94 V-0 | 1 | Header | 85 °C | -25 °C | 0.217 in | 5.51 mm | 0.13 in | 3.3 mm | Shrouded - 4 Wall | Male Pin | 100 V | Tin | 7 | Nylon 6T Polyamide (PA6T) | Board to Cable/Wire | Solder | All | Right Angle Surface Mount |
