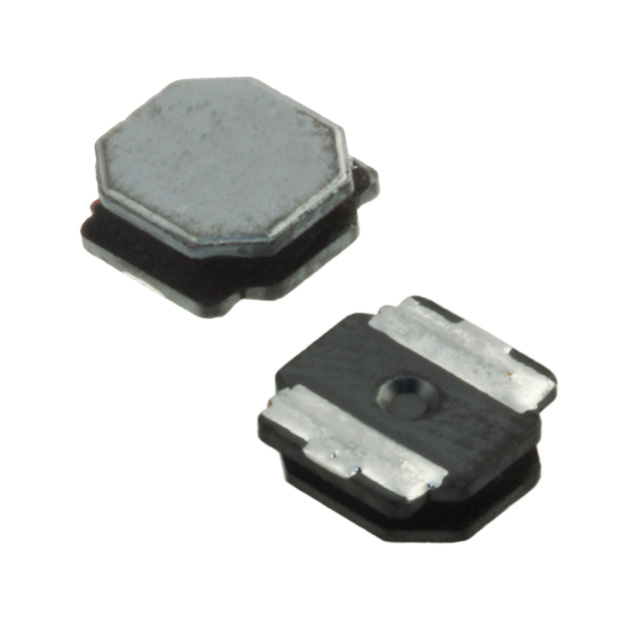

NRS Series

Catalog

INDUCTOR, 47 ΜH, 520 MA IRMS, 700 MA ISAT, SHIELDED, 4 MM L X 4 MM W X 1.8 MM H

Part	Tolerance	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Shielding	Current Rating (Amps)	Mounting Type	Frequency - Self Resonant	DC Resistance (DCR)	Type	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Height - Seated (Max)	Package / Case
Taiyo Yuden NRS4018T470MDGJ	20 %	Nonstandard	0.157 "	4 mm	0.157 in	4 mm	47 µH	Semi-Shielded	0.44 A	Surface Mount	10 MHz	780 mOhm	Drum Core Wirewound	Ferrite	-25 °C	125 °C	100 kHz	0.6 A	1.8 mm	0.071 in
Taiyo Yuden NRS6014T6R8MMGGV	20 %	Nonstandard	0.236 "	6 mm	0.236 in	6 mm	6.8 µH	Shielded	1.65 A	Surface Mount	30 MHz		Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	1.7 A	1.4 mm	0.055 in	138 mOhm	AEC-Q200
Taiyo Yuden NRS8030T1R0NJGJV	30 %	Nonstandard	0.315 in	8 mm	0.315 in	8 mm	1 µH	Shielded	6.2 Amps	Surface Mount	120 MHz		Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	7.8 A			11.7 mOhm	AEC-Q200	0.118 "	3 mm
Taiyo Yuden NRS5030T100MMGJV	20 %	Nonstandard	0.193 in	4.9 mm	0.193 in	4.9 mm	10 µH	Semi-Shielded Shielded	1.7 A	Surface Mount	20 MHz		Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	2.1 A			91 mOhm	AEC-Q200	0.118 "	3 mm
Taiyo Yuden NRS3015T2R2MNGH8	20 %	1212	0.118 in	3 mm	0.118 "	3 mm	2.2 µH	Unshielded	1.5 A	Surface Mount	64 MHz	58 mOhm	Wirewound	Ferrite	-40 C	125 °C	100 kHz	1.48 A		0.059 "					1212	1.5 mm	3030 Metric
Taiyo Yuden NRS5014T150MMGGV	20 %	Nonstandard	0.193 in	4.9 mm	0.193 in	4.9 mm	15 µH	Shielded	650 mA	Surface Mount	20 MHz		Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	1.1 A	1.4 mm	0.055 in	384 mOhm	AEC-Q200

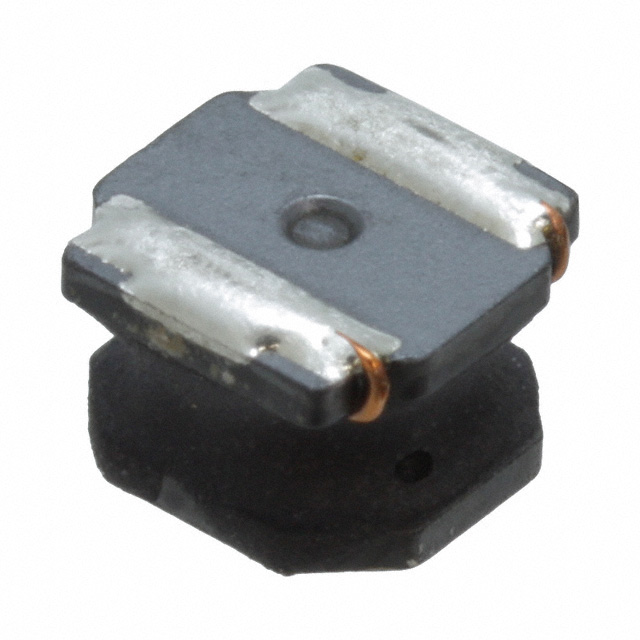

Taiyo Yuden NRS6045T3R3NMGK	20 %	Nonstandard	0.236 "	6 mm	0.236 in	6 mm	3.3 µH	Shielded	3.3 A	Surface Mount	45 MHz		Drum Core Wirewound	Ferrite	-25 °C	120 °C	100 kHz	5.6 A			31.2 mOhm		0.177 in	4.5 mm
Taiyo Yuden NRS6010T2R2MMGFV	20 %	Nonstandard	0.236 "	6 mm	0.236 in	6 mm	2.2 µH	Shielded	1.7 A	Surface Mount	56 MHz		Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	1.9 A	1 mm	0.039 in	132 mOhm	AEC-Q200
Taiyo Yuden NRS5010T3R3MMGFV	20 %	Nonstandard	0.193 in	4.9 mm	0.193 in	4.9 mm	3.3 µH	Shielded	1.25 A	Surface Mount	42 MHz	150 mOhm	Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	1.4 A	1 mm	0.039 in		AEC-Q200
Taiyo Yuden NRS5024T1R0NMGJV	30 %	Nonstandard	0.193 in	4.9 mm	0.193 in	4.9 mm	1 µH	Semi-Shielded	4.4 A	Surface Mount	85 MHz		Drum Core Wirewound	Ferrite	-40 C	125 °C	100 kHz	5.8 A			19.2 mOhm	AEC-Q200	0.094 in	2.4 mm
