PL054 Series

Catalog

TEM 40X40X3.91

Part	Number of Stages	Height [z]	Type	Delta Tmax @ Th	Current - Max [Max]	Features	Resistance	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]

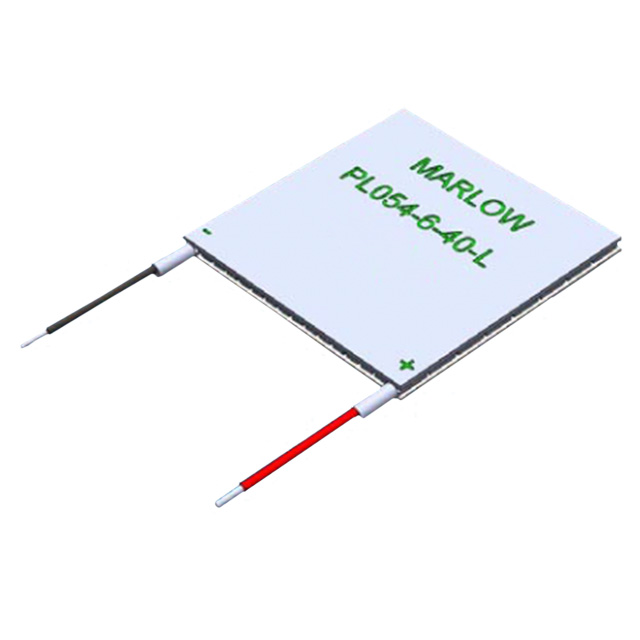

Marlow Industries, Inc. PL054-6-40-01LS	1	3.91 mm	TEC (Thermoelectric Cooler)	66 °C	6 A	Lapped Lead Wires Sealed	2.24 Ohms	54 W	40.01 mm	40.01 mm	14.7 V
Marlow Industries, Inc. PL054-6-40-01L	1	3.91 mm	TEC (Thermoelectric Cooler)	66 °C	6 A	Lapped Lead Wires	2.24 Ohms	54 W	40.01 mm	40.01 mm	14.7 V

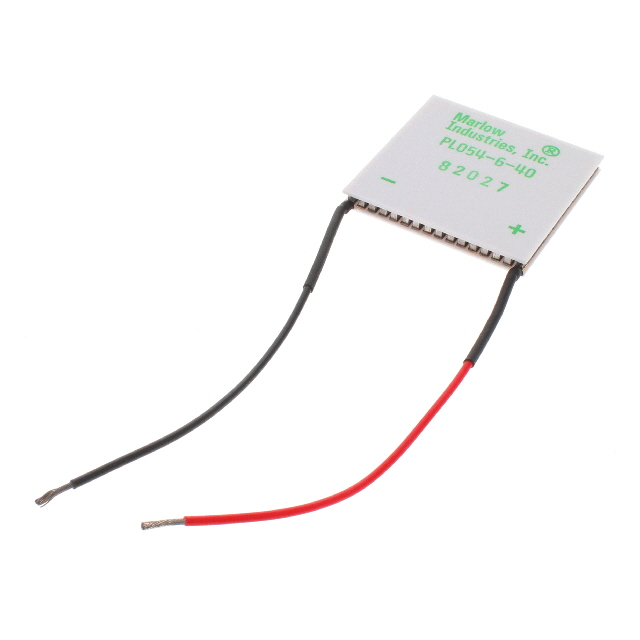

Marlow Industries, Inc. PL054-6-40-01	1	4.01 mm	TEC (Thermoelectric Cooler)	66 °C	6 A	Lead Wires	2.24 Ohms	54 W	40.01 mm	40.01 mm	14.7 V
