AB Series

Catalog

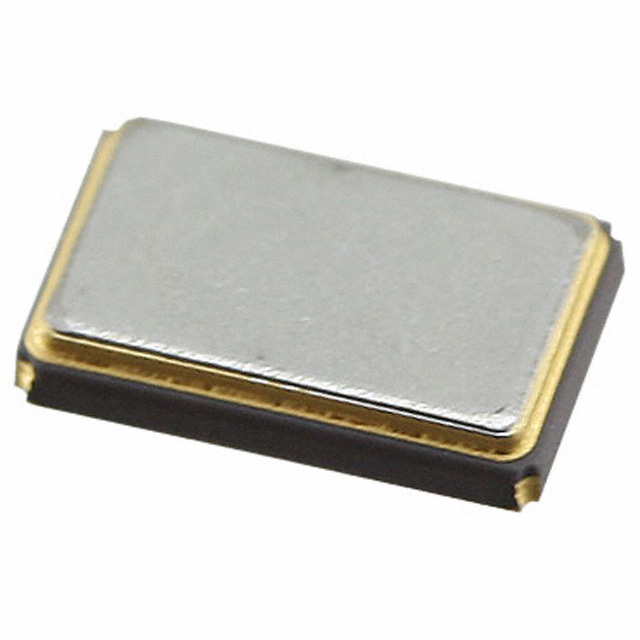

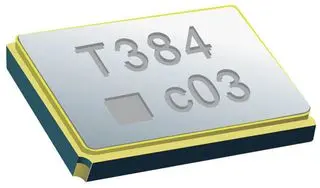

CRYSTAL, SURFACE MOUNT, 10 MHZ, SMD, 5MM X 3.2MM, 150 PPM, 12 PF, 30 PPM, AB SERIES

Part	Package Width	Package Name	Package Length	Type	Size / Dimension Length	Size / Dimension Width	ESR (Equivalent Series Resistance)	Frequency Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	Ratings	Load Capacitance	Height - Seated (Max)	Mounting Type	Frequency Stability	Operating Mode	Frequency	Package / Case
TXC CORPORATION AB-10.000MALE-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	100 Ohm	30 ppm	125 °C	-40 °C	AEC-Q200	12 pF	0.041 in	Surface Mount	150 ppm	Fundamental	10 MHz	4-SMD No Lead
TXC CORPORATION AB-24.19066MENE-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	60 Ohm	10 ppm	125 °C	-40 °C	AEC-Q200	12 pF	0.041 in	Surface Mount	50 ppm	Fundamental	24.19066 MHz	4-SMD No Lead
TXC CORPORATION AB-13.560MANE-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	80 Ohm	30 ppm	125 °C	-40 °C	AEC-Q200	12 pF	0.041 in	Surface Mount	50 ppm	Fundamental	13.56 MHz	4-SMD No Lead
TXC CORPORATION AB-25.000MAGE-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	60 Ohm	30 ppm	85 °C	-40 °C	AEC-Q200	12 pF	0.041 in	Surface Mount	50 ppm	Fundamental	25 MHz	4-SMD No Lead
TXC CORPORATION AB-24.000MAGE-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	60 Ohm	30 ppm	85 °C	-40 °C	AEC-Q200	12 pF	0.041 in	Surface Mount	50 ppm	Fundamental	24 MHz	4-SMD No Lead
TXC CORPORATION AB-18.000MAHH-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	80 Ohm	30 ppm	85 °C	-40 °C	AEC-Q200	15 pF	0.041 in	Surface Mount	30 ppm	Fundamental	18 MHz	4-SMD No Lead
TXC CORPORATION AB-14.31818MAHQ-T	3.2 mm	4-SMD	5 mm	MHz Crystal	0.197 in	0.126 in	80 Ohm	30 ppm	85 °C	-40 °C	AEC-Q200	10 pF	0.041 in	Surface Mount	30 ppm	Fundamental	14.318 MHz	4-SMD No Lead
