BB-FOSTC Series

Catalog

FOSTCDRI WITH INVERTED FIBER.

Part	Fiber Type	Voltage - Input [Min]	Voltage - Input [Max]	Connector Type	Fiber Ports	Ingress Protection	Distance [x]	Mounting Type	Configuration	Type	Operating Temperature [Max]	Operating Temperature [Min]	Distance

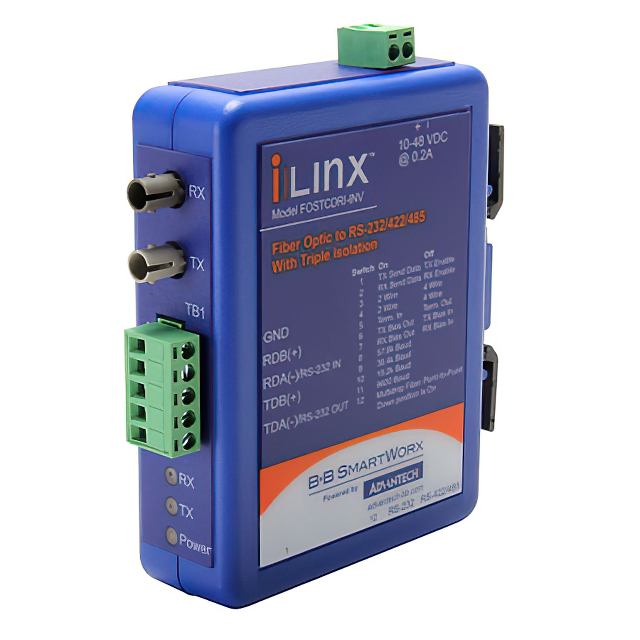

Advantech Corporation BB-FOSTCDRI-INV	Multimode	10 V	48 V	ST	2	IP20	4 km	DIN Rail	Fixed	Unmanaged	80 °C	-40 C
Advantech Corporation BB-FOSTCDRI-PH-SC	Singlemode	10 V	48 V	SC	2	IP30		Panel Mount	Fixed	Unmanaged	85 °C	-40 C	15 km

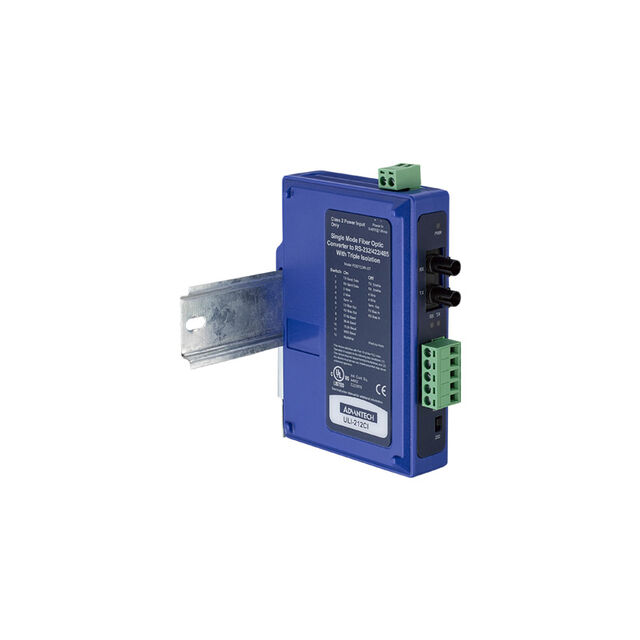

Advantech Corporation BB-FOSTCDRI-ST	Singlemode	10 V	48 V	ST	2	IP30		DIN Rail	Fixed	Unmanaged	80 °C	-40 C	15 km
Advantech Corporation BB-FOSTCDRI-INV	Multimode	10 V	48 V	ST	2	IP20	4 km	DIN Rail	Fixed	Unmanaged	80 °C	-40 C
Advantech Corporation BB-FOSTCDR-INV	Multimode	10 V	30 V	ST	1 2		4 km	DIN Rail	Fixed	Unmanaged	80 °C	-40 C
Advantech Corporation BB-FOSTCDR-INV	Multimode	10 V	30 V	ST	2		4 km	DIN Rail	Fixed	Unmanaged	80 °C	-40 C
Advantech Corporation BB-FOSTCDRI-PH-MT	Multimode	10 V	48 V	ST	2	IP30		Panel Mount	Fixed	Unmanaged	85 °C	-40 C	2 km
Advantech Corporation BB-FOSTCDRI-PH-MT	Multimode	10 V	48 V	ST	2	IP30		Panel Mount	Fixed	Unmanaged	85 °C	-40 C	2 km
Advantech Corporation BB-FOSTCDRI-PH-SC	Singlemode	10 V	48 V	SC	2	IP30		Panel Mount	Fixed	Unmanaged	85 °C	-40 C	15 km
Advantech Corporation BB-FOSTCDRI-ST	Singlemode	10 V	48 V	ST	2	IP30		DIN Rail	Fixed	Unmanaged	80 °C	-40 C	15 km
