DI035P04 Series

Catalog

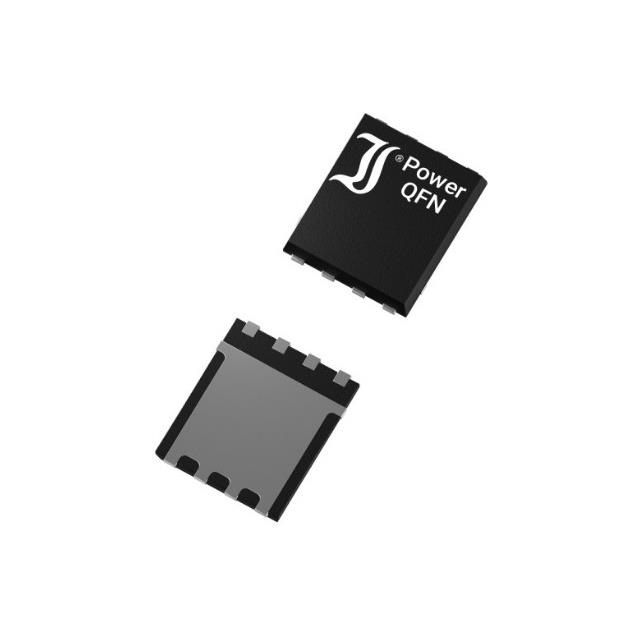

MOSFET POWERQFN 3X3 P -40V -35A

Part	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Mounting Type	Package / Case	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Vgs(th) (Max) @ Id	Technology	FET Type	Grade	Qualification
Diotec Semiconductor DI035P04PT	4.5 V 10 V	35 A	8-QFN (3x3)	40 W	19 mOhm	Surface Mount	8-PowerWDFN	2570 pF	150 °C	-55 °C	40 V	30 nC	20 V	2.5 V	MOSFET (Metal Oxide)	P-Channel
Diotec Semiconductor DI035P04PT-AQ	4.5 V 10 V	35 A	8-QFN (3x3)	40 W	19 mOhm	Surface Mount	8-PowerVDFN	2570 pF	150 °C	-55 °C	40 V	30 nC	20 V	2.5 V	MOSFET (Metal Oxide)	P-Channel	Automotive	AEC-Q101
