77318 Series

Catalog

CONN HEADER R/A 48POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Number of Positions Loaded	Termination	Contact Material	Shrouding	Contact Shape	Connector Type	Number of Rows	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded [custom]
Amphenol ICC (FCI) 77318-831LF	2.54 mm	0.1 in	UL94 V-0	Gold or Gold GXT™	48	Thermoplastic	0.12 in	3.05 mm	0.1 in	2.54 mm	Male Pin	Push-Pull	24	Solder	Phosphor Bronze	Unshrouded	Square	Breakaway Header	2	Through Hole Right Angle	15 µin	0.38 µm	6.8 mm	0.268 in	4.83 mm	0.19 in	Black

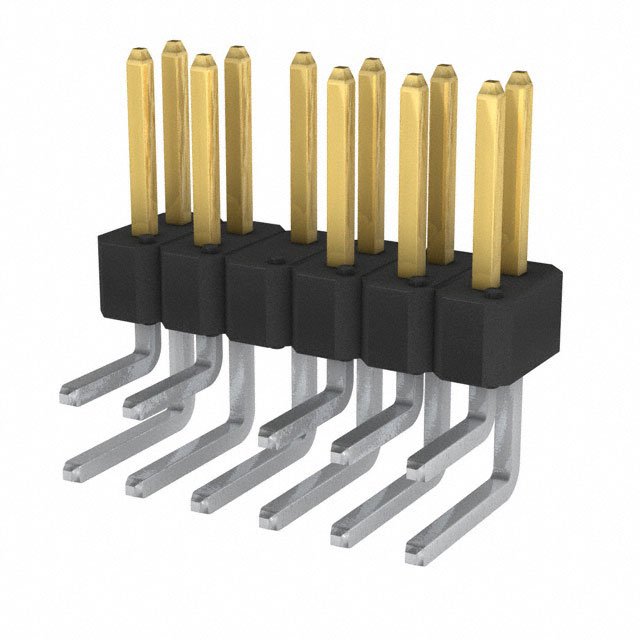

Amphenol ICC (FCI) 77318-808LF	2.54 mm	0.1 in	UL94 V-0	Gold or Gold GXT™	12	Thermoplastic	0.12 in	3.05 mm	0.1 in	2.54 mm	Male Pin	Push-Pull	11	Solder	Phosphor Bronze	Unshrouded	Square	Breakaway Header	2	Through Hole Right Angle	15 µin	0.38 µm	5.84 mm		4.83 mm	0.19 in	Black	0.23 in
Amphenol ICC (FCI) 77318-133LF	2.54 mm	0.1 in	UL94 V-0	Gold or Gold GXT™	48	Thermoplastic	0.12 in	3.05 mm	0.1 in	2.54 mm	Male Pin	Push-Pull	24	Solder	Phosphor Bronze	Unshrouded	Square	Breakaway Header	2	Through Hole Right Angle	30 Áin	0.76 Ám			4.83 mm	0.19 in	Black	0.318 "	8.08 mm

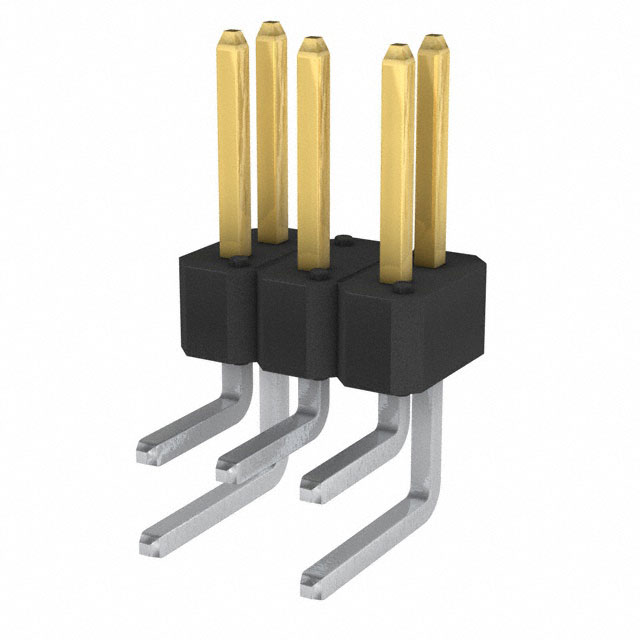

Amphenol ICC (FCI) 77318-809LF	2.54 mm	0.1 in	UL94 V-0	Gold or Gold GXT™	6	Thermoplastic	0.12 in	3.05 mm	0.1 in	2.54 mm	Male Pin	Push-Pull		Solder	Phosphor Bronze	Unshrouded	Square	Breakaway Header	2	Through Hole Right Angle	15 µin	0.38 µm	5.84 mm		4.83 mm	0.19 in	Black	0.23 in		5
Amphenol ICC (FCI) 77318-131LF	2.54 mm	0.1 in	UL94 V-0	Gold or Gold GXT™	48	Thermoplastic	0.12 in	3.05 mm	0.1 in	2.54 mm	Male Pin	Push-Pull	24	Solder	Phosphor Bronze	Unshrouded	Square	Breakaway Header	2	Through Hole Right Angle	30 Áin	0.76 Ám	6.8 mm	0.268 in	4.83 mm	0.19 in	Black

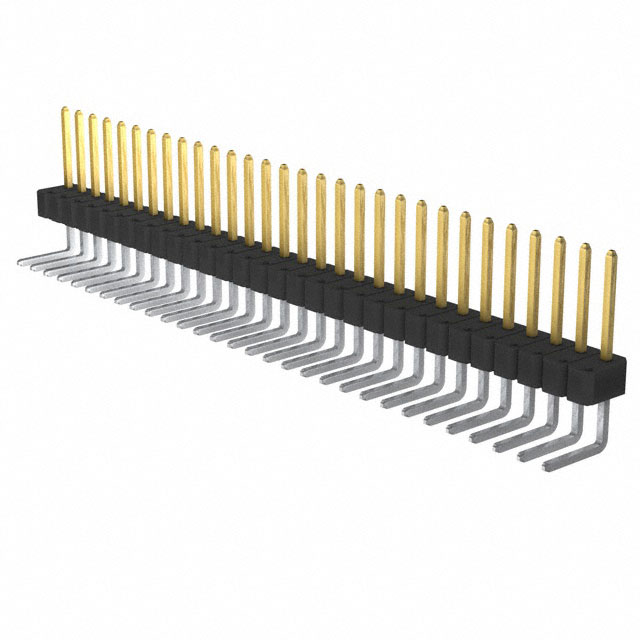

Amphenol ICC (FCI) 77318-134LF	2.54 mm	0.1 in	UL94 V-0	Gold or Gold GXT™	60	Thermoplastic	0.12 in	3.05 mm	0.1 in	2.54 mm	Male Pin	Push-Pull	30	Solder	Phosphor Bronze	Unshrouded	Square	Breakaway Header	2	Through Hole Right Angle	30 Áin	0.76 Ám			4.83 mm	0.19 in	Black	0.318 "	8.08 mm
